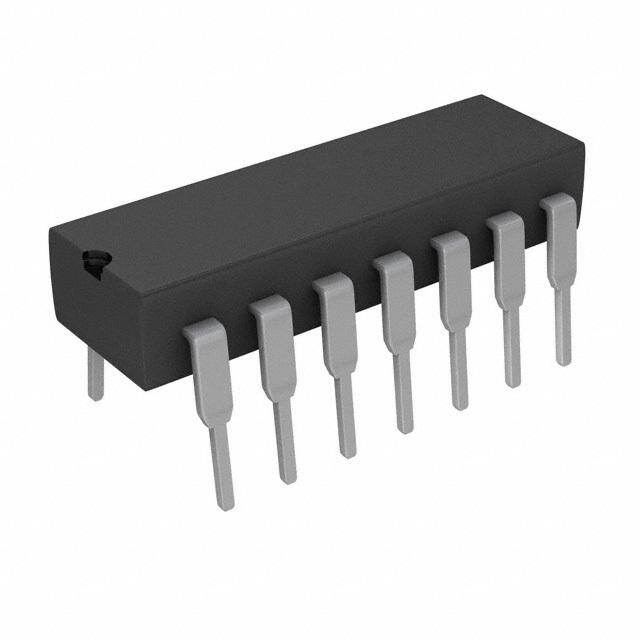

INA2134PAG4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
e4 Rail/Tube ALSO OPERATES WITH 8V TO 36V SINGLE SUPPLY DUAL audio amplifier 1mV 19.305mm 2.4mA 74dB
PDF
/
Buying Options
Total Price: USD $40.44
Unit Price: USD $40.443567
≥1 USD $40.443567
≥10 USD $38.154307
≥100 USD $35.994626
≥500 USD $33.957198
≥1000 USD $32.035093
Inventory: 1769
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 19.305mm
Height Seated (Max) 5.08mm
Technical
Min Dual Supply Voltage 4V
Max Dual Supply Voltage 18V
Voltage Gain 0dB
Neg Supply Voltage-Nom (Vsup) -18V
Input Offset Voltage (Vos) 1mV
Common Mode Rejection Ratio 74 dB
Slew Rate 14 V/μs
Quiescent Current 2.4mA
Nominal Supply Current 2.4mA
Analog IC - Other Type ANALOG CIRCUIT
Min Supply Voltage 8V
Max Supply Voltage 36V
Number of Channels 2
Temperature Grade INDUSTRIAL
Operating Supply Voltage 18V
Qualification Status Not Qualified
Pin Count 14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 18V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Additional Feature ALSO OPERATES WITH 8V TO 36V SINGLE SUPPLY
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 50kOhm
Number of Terminations 14
JESD-609 Code e4
Packaging Rail/Tube
Physical
Number of Pins 14
Surface Mount NO
Package / Case PDIP
