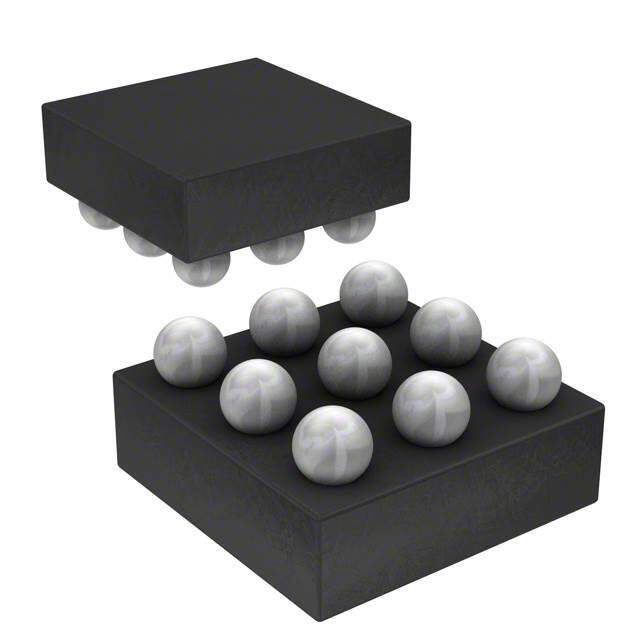

TS4990EIJT
RoHS
RoHS compliant
RoHS compliantPackage 9-WFBGA, FCBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TS4990 Tape & Reel (TR) Depop Differential Inputs Standby Thermal Protection audio amplifier 2.2V 1.6mm 1.2W x 1 @ 8Ohm 6mA
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1615
≥1 USD $0.1615
≥10 USD $0.133
≥100 USD $0.12825
≥500 USD $0.12445
≥1000 USD $0.12065
Inventory: 241008
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 1.6mm
Height Seated (Max) 0.6mm
Technical
Harmonic Distortion 1%
Max Output Power x Channels @ Load 1.2W x 1 @ 8 Ω
Max Output Power 1.2W
Power Supply Rejection Ratio (PSRR) 64dB
Gain Bandwidth Product 1.5MHz
Bandwidth 20 kHz
Supply Type Single
Output Power 1.2W
Quiescent Current 3.7mA
Max Supply Current 6mA
Nominal Supply Current 6mA
Number of Channels 1
Supply Voltage-Min (Vsup) 2.2V
Operating Supply Voltage 5V
Output Type 1-Channel (Mono)
Pin Count 9
Base Part Number TS4990
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.2V~5.5V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Type Class AB
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Depop, Differential Inputs, Standby, Thermal Protection
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 9
Package / Case 9-WFBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 24 Weeks
