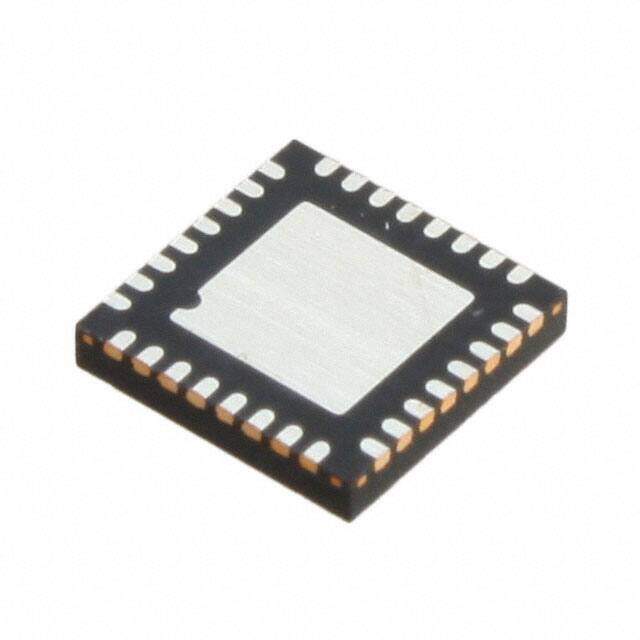

TS4982IQT
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
EAR99 TS4982 Tape & Reel (TR) 3D Depop Short-Circuit and Thermal Protection Standby audio amplifier 5V 5mm 2W x 2 @ 4Ohm; 125mW x 2 @ 16Ohm 12mA
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.459172
≥1 USD $1.459172
≥10 USD $1.376575
≥100 USD $1.298661
≥500 USD $1.225149
≥1000 USD $1.155802
Inventory: 1534
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Number of Pins 32
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e3
Feature 3D, Depop, Short-Circuit and Thermal Protection, Standby
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 32
ECCN Code EAR99
Type Class AB
Terminal Finish Matte Tin (Sn) - annealed
Subcategory Audio/Video Amplifiers
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number TS4982
Pin Count 32
Output Type 2-Channel (Stereo) with Stereo Headphones
Operating Supply Voltage 5V
Power Supplies 5V
Number of Channels 2
Nominal Supply Current 12mA
Max Supply Current 12mA
Output Power 2W
Bandwidth 22 kHz
Voltage Gain 13.5dB
Power Supply Rejection Ratio (PSRR) 75dB
Gain 3.5 dB
Max Dual Supply Voltage 5.5V
Max Output Power 2W
Min Dual Supply Voltage 4.5V
Dual Supply Voltage 5V
Max Output Power x Channels @ Load 2W x 2 @ 4 Ω; 125mW x 2 @ 16 Ω
Dimensions
Height Seated (Max) 1mm
Length 5mm
Width 5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
