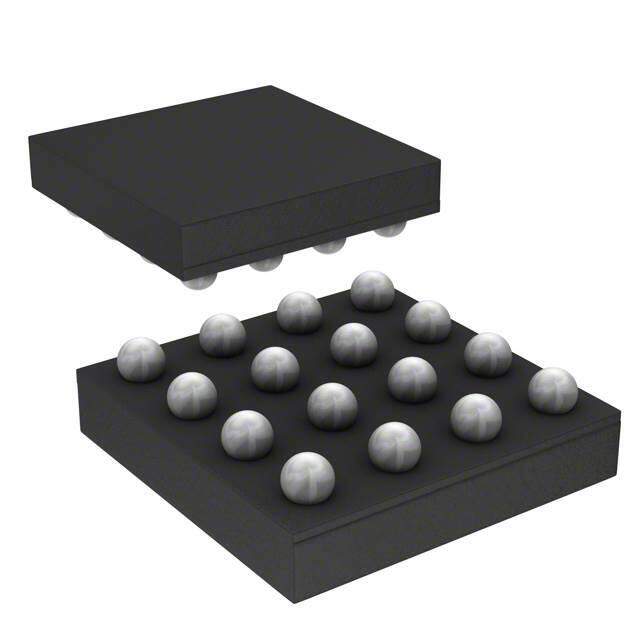

TS2012EIJT
RoHS
RoHS compliant
RoHS compliantPackage 16-UFBGA, FCBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TS2012 Tape & Reel (TR) Depop Differential Inputs Short-Circuit and Thermal Protection Standby audio amplifier 2.5V 2.1mm 2.5W x 1 @ 8Ohm 5mA
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 16226
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-UFBGA, FCBGA
Number of Pins 16
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Feature Depop, Differential Inputs, Short-Circuit and Thermal Protection, Standby
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Termination SMD/SMT
ECCN Code EAR99
Type Class D
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Voltage - Supply 2.5V~5.5V
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number TS2012
Pin Count 16
Output Type 2-Channel (Stereo)
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 3/5V
Supply Voltage-Min (Vsup) 2.5V
Number of Channels 2
Nominal Supply Current 5mA
Output Power 2.5W
Bandwidth 20 kHz
Voltage Gain 24dB
Power Supply Rejection Ratio (PSRR) 65dB
Max Output Power 2.5W
Max Output Power x Channels @ Load 2.5W x 1 @ 8 Ω
Dimensions
Length 2.1mm
Width 2.1mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
