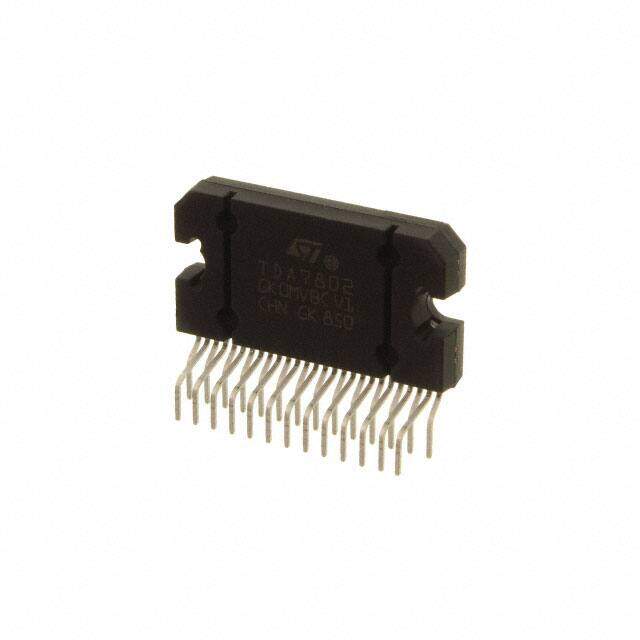

TDA7802
RoHS
RoHS compliant
RoHS compliantPackage 27-Flexiwatt (Formed Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
EAR99 TDA7802 Tube Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Standby audio amplifier 6V 1mm 72W x 4 @ 2Ohm 28W
PDF
/
Buying Options
Total Price: USD $12.36
Unit Price: USD $12.3596
≥1 USD $12.3596
≥10 USD $11.66
≥100 USD $11
Inventory: 374
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Max Output Power x Channels @ Load 72W x 4 @ 2 Ω
Input Offset Voltage (Vos) 50mV
Output Power 28W
Number of Channels 4
Supply Voltage-Min (Vsup) 6V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 18V
Output Type 4-Channel (Quad)
Qualification Status Not Qualified
Base Part Number TDA7802
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Voltage - Supply 6V~18V
Technology BCDMOS
Subcategory Audio/Video Amplifiers
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Class SB
ECCN Code EAR99
Number of Terminations 27
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Standby
Series Automotive, AEC-Q100
Packaging Tube
Physical
Number of Pins 27
Package / Case 27-Flexiwatt (Formed Leads)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 17 Weeks
