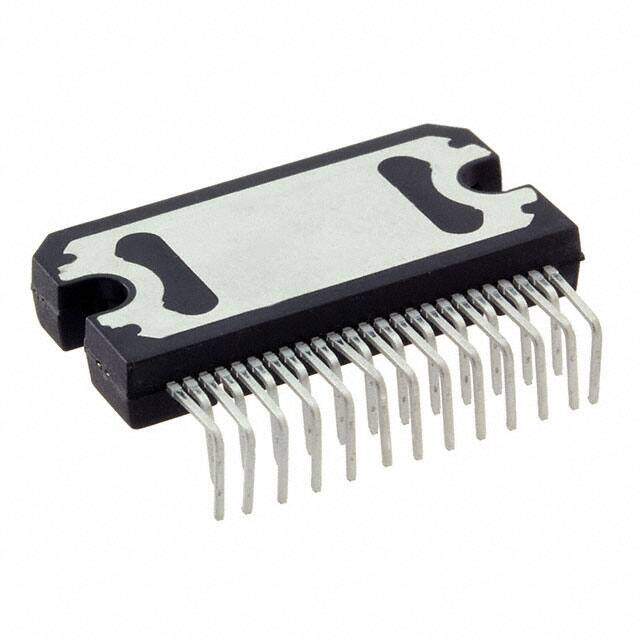

TDA75610LV image
Favorite
TDA75610LV image
Favorite

TDA75610LV

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 27-Flexiwatt (Formed Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description 8542.33.00.01 TDA7561 Tube Mute Standby audio amplifier 6V 1mm 45W x 4 @ 4Ohm 44W
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 23873
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks
Lifecycle Status NRND (Last Updated: 8 months ago)

Physical

Mount Surface Mount, Through Hole
Mounting Type Surface Mount
Package / Case 27-Flexiwatt (Formed Leads)
Number of Pins 27

Technical

Operating Temperature -40°C~105°C TA
Packaging Tube
JESD-609 Code e3
Feature Mute, Standby
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 27
ECCN Code EAR99
Type Class AB
Terminal Finish Tin (Sn)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Technology BCDMOS
Voltage - Supply 6V~18V
Terminal Position ZIG-ZAG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TDA7561
Qualification Status Not Qualified
Output Type 4-Channel (Quad)
Supply Voltage-Max (Vsup) 18V
Power Supplies 14.4V
Supply Voltage-Min (Vsup) 6V
Number of Channels 4
Output Power 44W
Input Offset Voltage (Vos) 80mV
Bandwidth 22 kHz
Voltage Gain 26dB
Max Output Power 45W
Max Output Power x Channels @ Load 45W x 4 @ 4 Ω
Harmonic Distortion 10%

Compliance

RoHS Status ROHS3 Compliant
