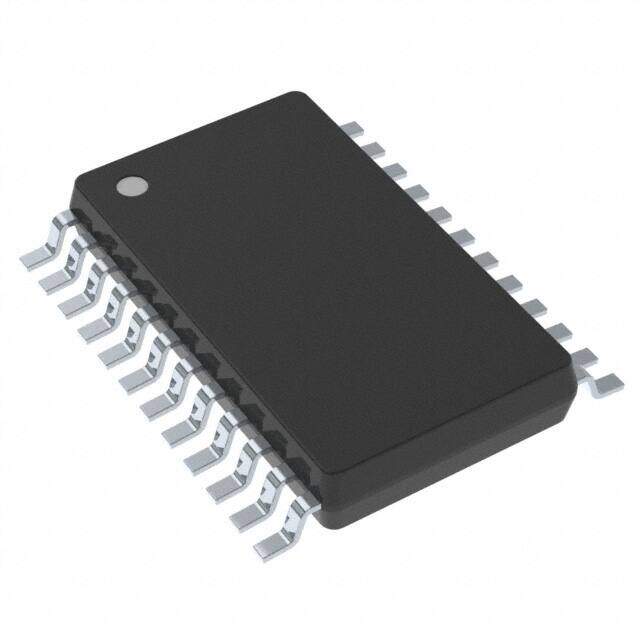

TDA7266P13TR image
Favorite
TDA7266P13TR image
Favorite

TDA7266P13TR

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 24-PowerBSOP (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description EAR99 TDA7266 Tape & Reel (TR) Mute Short-Circuit and Thermal Protection Standby audio amplifier 9V 0.8mm 4W x 2 @ 8Ohm 4W
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $0.96045
≥100 USD $0.931
≥500 USD $0.9006
≥1000 USD $0.87115
Inventory: 1650
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-PowerBSOP (0.295, 7.50mm Width) Exposed Pad
Number of Pins 24

Technical

Operating Temperature 0°C~70°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e3
Feature Mute, Short-Circuit and Thermal Protection, Standby
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
ECCN Code EAR99
Type Class AB
Terminal Finish Matte Tin (Sn) - annealed
Subcategory Audio/Video Amplifiers
Voltage - Supply 3.5V~12V
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 2
Terminal Pitch 0.8mm
Base Part Number TDA7266
Output Type 2-Channel (Stereo)
Operating Supply Voltage 9V
Power Supplies 7.5V
Output Power 4W
Supply Type Single
Voltage Gain 26dB
Power Supply Rejection Ratio (PSRR) 56dB
Gain 26 dB
Max Output Power 4W
Max Output Power x Channels @ Load 4W x 2 @ 8 Ω

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
