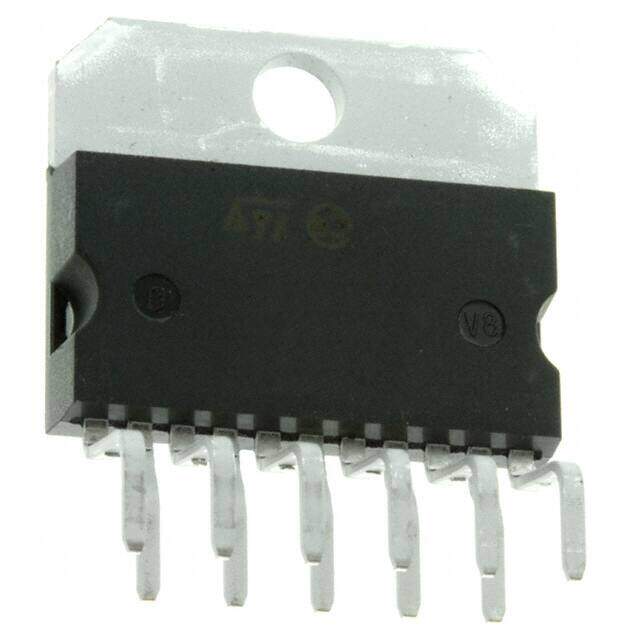

TDA7265B
RoHS
RoHS compliant
RoHS compliantPackage Multiwatt-11 (Vertical, Bent and Staggered Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TDA7265 Tube Depop Mute Short-Circuit and Thermal Protection Standby audio amplifier 24V 1.7mm 30W x 2 @ 8Ohm 130mA
PDF
/
Buying Options
Total Price: USD $8.18
Unit Price: USD $8.1752
≥1 USD $8.1752
≥10 USD $7.38584
≥100 USD $7.042464
≥500 USD $6.114856
≥1000 USD $5.839997
≥3000 USD $5.324722
Inventory: 572
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Multiwatt-11 (Vertical, Bent and Staggered Leads)
Number of Pins 11
Technical
Operating Temperature -20°C~85°C TA
Packaging Tube
JESD-609 Code e3
Feature Depop, Mute, Short-Circuit and Thermal Protection, Standby
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Class AB
Terminal Finish Tin (Sn)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Max Power Dissipation 40W
Technology BIPOLAR
Voltage - Supply ±8V~33V
Terminal Position ZIG-ZAG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 1.7mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TDA7265
Qualification Status Not Qualified
Output Type 2-Channel (Stereo)
Power Supplies +-23V
Number of Channels 2
Power Dissipation 40W
Supply Current-Max 130mA
Output Power 30W
Supply Type Dual
Input Offset Voltage (Vos) 20mV
Bandwidth 200 kHz
Gain 29 dB
Max Dual Supply Voltage 33V
Max Output Power 30W
Min Dual Supply Voltage 8V
Dual Supply Voltage 24V
Max Output Power x Channels @ Load 30W x 2 @ 8 Ω
Harmonic Distortion 10%
Compliance
RoHS Status ROHS3 Compliant
