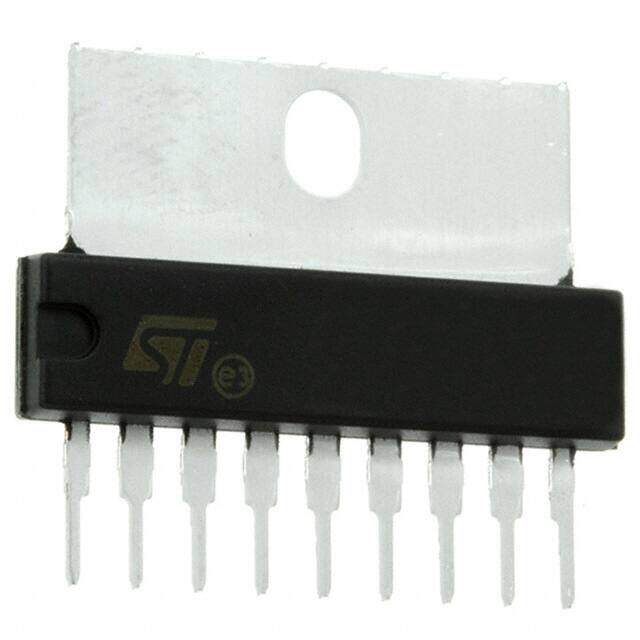

TDA2007A
RoHS
RoHS compliant
RoHS compliantPackage 9-SIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TDA2007 Tube Short-Circuit and Thermal Protection audio amplifier 8V 2.54mm 6W x 2 @ 8Ohm 3A
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.54245
≥1 USD $0.54245
≥10 USD $0.44555
≥100 USD $0.4313
≥500 USD $0.418
≥1000 USD $0.40375
Inventory: 1657
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-SIP
Number of Pins 9
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tube
JESD-609 Code e3
Feature Short-Circuit and Thermal Protection
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Class AB
Terminal Finish Tin (Sn)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Max Power Dissipation 10W
Technology BIPOLAR
Voltage - Supply 8V~26V
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.54mm
Base Part Number TDA2007
Pin Count 9
Output Voltage 8.5V
Output Type 2-Channel (Stereo)
Operating Supply Voltage 24V
Supply Voltage-Max (Vsup) 26V
Supply Voltage-Min (Vsup) 8V
Number of Channels 2
Nominal Supply Current 3A
Power Dissipation 10W
Quiescent Current 50mA
Output Power 6W
Supply Type Single
Bandwidth 80 kHz
Voltage Gain 36dB
Power Supply Rejection Ratio (PSRR) 55dB
Gain 36 dB
Max Output Power 6W
Max Output Power x Channels @ Load 6W x 2 @ 8 Ω
Harmonic Distortion 0.5%
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
