STA543SA
RoHS
RoHS compliant

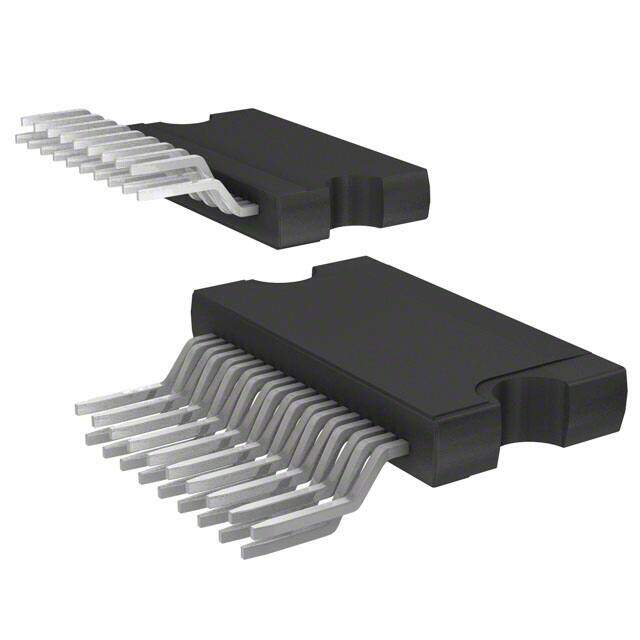

RoHS compliantPackage Clipwatt-19 (Vertical, Bent and Staggered Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.39.00.01 STA543 Tube Short-Circuit and Thermal Protection Standby Volume Control audio amplifier 8V 11mm 24W x 1 @ 4Ohm; 7W x 2 @ 4Ohm 150mA
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.42415
≥1 USD $4.42415
≥10 USD $3.62995
≥100 USD $3.5169
≥500 USD $3.40385
≥1000 USD $3.28985
Inventory: 988
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Clipwatt-19 (Vertical, Bent and Staggered Leads)
Number of Pins 19
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
JESD-609 Code e3
Feature Short-Circuit and Thermal Protection, Standby, Volume Control
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 19
ECCN Code EAR99
Type Class AB
Terminal Finish Matte Tin (Sn)
HTS Code 8542.39.00.01
Subcategory Audio/Video Amplifiers
Technology CMOS
Voltage - Supply 8V~18V
Terminal Position ZIG-ZAG
Peak Reflow Temperature (Cel) 250
Number of Functions 1
Base Part Number STA543
Pin Count 19
Output Type 3-Channel
Operating Supply Voltage 15V
Supply Voltage-Max (Vsup) 18V
Supply Voltage-Min (Vsup) 8V
Number of Channels 3
Power Dissipation 35W
Supply Current-Max 150mA
Voltage Gain 26dB
Max Output Power 24W
Max Output Power x Channels @ Load 24W x 1 @ 4 Ω; 7W x 2 @ 4 Ω
Harmonic Distortion 0.4%
Channel Separation 70 dB
Dimensions
Height 11mm
Length 19.85mm
Width 3.2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Alternative Model
