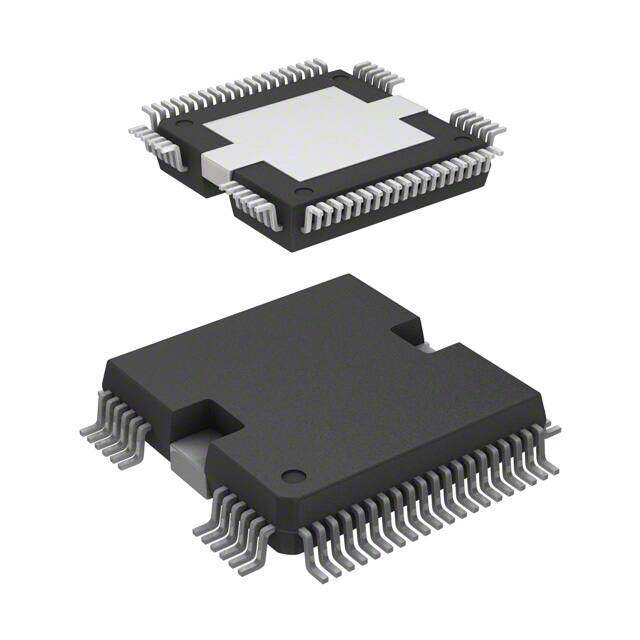

E-TDA7570 image
Favorite
E-TDA7570 image
Favorite
RoHS
RoHS RoHS compliant
Package 64-BQFP Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description IC AMP D MONO/STER 250W 64HIQUAD
PDF
/
Inventory: 5876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Max Output Power x Channels @ Load 250W x 1 @ 4Ohm; 70W x 2 @ 4Ohm
Min Dual Supply Voltage 12V
Max Output Power 250W
Max Dual Supply Voltage 30V
Voltage Gain 34dB
Power Dissipation 1.75W
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Base Part Number TDA7570
Voltage - Supply ±12V~30V
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Type Class D
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
Series Automotive
Packaging Tray
Operating Temperature -55°C~150°C TJ

Physical

Supplier Device Package 64-HiQUAD
Number of Pins 64
Package / Case 64-BQFP Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
