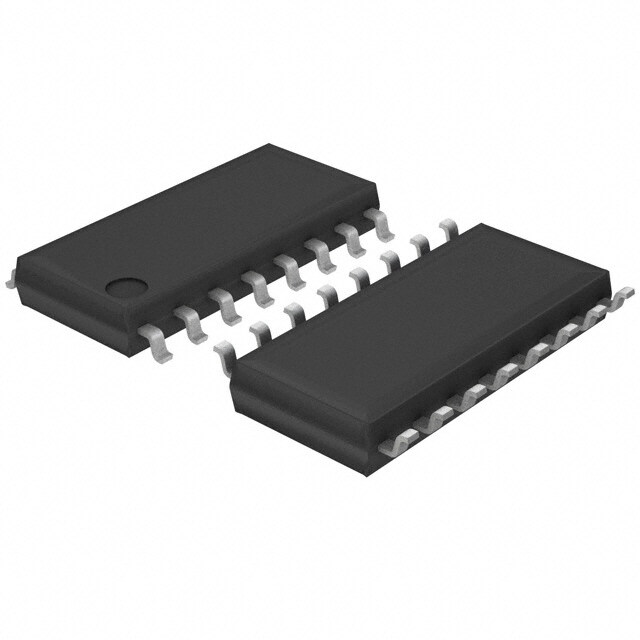

BA5152F-E2
RoHS
/
Package SOP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
GULL WING RoHS Compliant Lead Free Surface Mount audio amplifier 75C 20kHz 21dB 0.015W
PDF
/
Inventory: 2897
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOP
Number of Pins 16
Technical
Packaging Tape & Reel (TR)
Published 1999
JESD-609 Code e3/e2
Pbfree Code yes
Number of Terminations 16
ECCN Code EAR99
Terminal Finish TIN/TIN COPPER
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 10
Pin Count 16
Qualification Status Not Qualified
Operating Temperature (Max) 75°C
Operating Temperature (Min) -25°C
Supply Voltage-Max (Vsup) 1.8V
Power Supplies 1.5V
Temperature Grade COMMERCIAL EXTENDED
Supply Voltage-Min (Vsup) 1V
Number of Channels 2
Quiescent Current 12mA
Supply Current-Max 18mA
Output Power 0.015W
Bandwidth 20 kHz
Gain 21 dB
Max Output Power 15mW
Consumer IC Type AUDIO AMPLIFIER
Harmonic Distortion 10%
Dimensions
Height Seated (Max) 1.6mm
Length 10mm
Width 4.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
