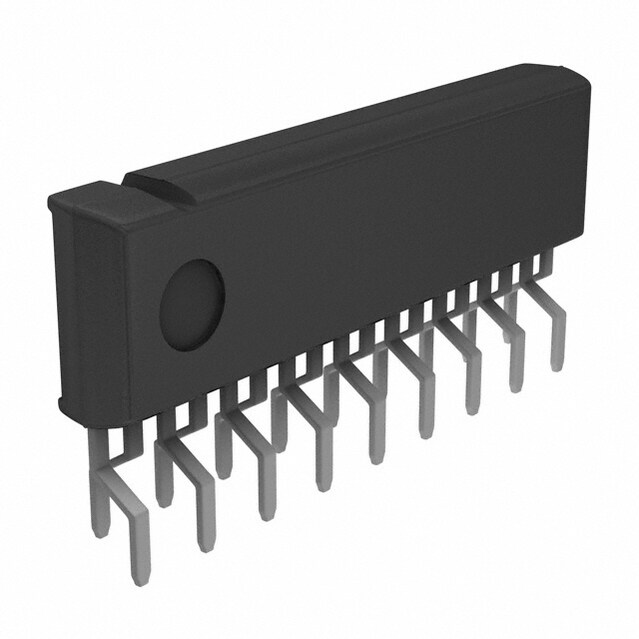

BA3416BL
RoHS
/
Package SIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
RoHS Compliant Lead Free Through Hole AUDIO PREAMPLIFIER audio amplifier 75C 20kHz 2.5mA 21.8mm
PDF
/
Buying Options
Total Price: USD $6.57
Unit Price: USD $6.57115
≥1 USD $6.57115
≥10 USD $5.3922
≥100 USD $5.2231
≥500 USD $5.05495
≥1000 USD $4.8868
Inventory: 1434
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.8mm
Length 21.8mm
Height Seated (Max) 8.4mm
Technical
Harmonic Distortion 0.08%
Consumer IC Type AUDIO PREAMPLIFIER
Bandwidth 20 kHz
Supply Current-Max 4mA
Quiescent Current 2.5mA
Number of Channels 2
Supply Voltage-Min (Vsup) 3.5V
Temperature Grade COMMERCIAL EXTENDED
Supply Voltage-Max (Vsup) 12V
Operating Temperature (Min) -25°C
Operating Temperature (Max) 75°C
Qualification Status Not Qualified
JESD-30 Code R-PZIP-T18
Pin Count 18
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 1.27mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position ZIG-ZAG
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish TIN/TIN COPPER
ECCN Code EAR99
Number of Terminations 18
Pbfree Code yes
JESD-609 Code e3/e2
Published 2012
Physical
Package / Case SIP
Mount Through Hole
