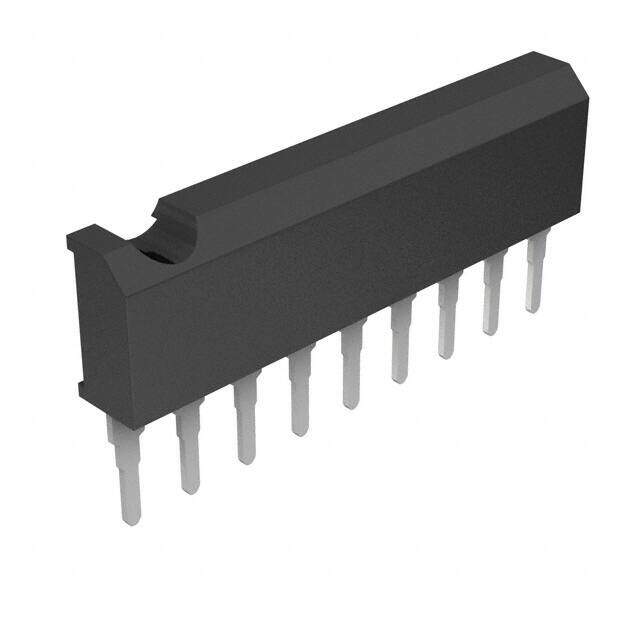

BA3308
RoHS
RoHS compliant
RoHS compliantPackage 9-SIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 BA3308 Tube 2000 audio amplifier 4.5V 21.8mm 3.5mA 80dB
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1227
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 2.8mm
Length 21.8mm
Height Seated (Max) 7.2mm
Technical
Harmonic Distortion 0.1%
Gain 80 dB
Bandwidth 20 kHz
Supply Current-Max 4.5mA
Quiescent Current 3.5mA
Number of Channels 2
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 7V
Supply Voltage-Max (Vsup) 14V
Output Type 2-Channel (Stereo)
Qualification Status Not Qualified
Pin Count 9
Base Part Number BA3308
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Voltage - Supply 4.5V~14V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish TIN/TIN COPPER
Type Class AB
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3/e2
Published 2000
Packaging Tube
Operating Temperature -25°C~75°C TA
Physical
Number of Pins 9
Package / Case 9-SIP
Mounting Type Through Hole
Mount Through Hole
