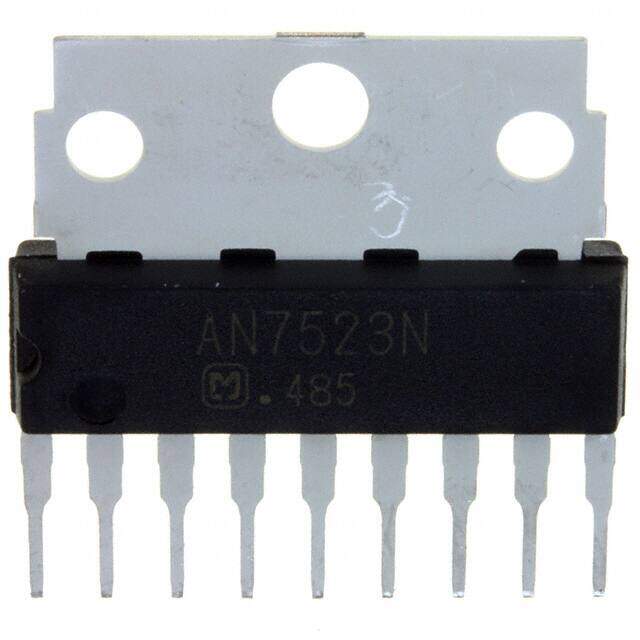

AN7523N
RoHS
/
Package 9-SIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
IC AMP CLASS AB MONO 4W 9HSIP
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1679
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Max Output Power x Channels @ Load 4W x 1 @ 8Ohm
Max Output Power 4W
Quiescent Current 20mA
Output Type 1-Channel (Mono)
Base Part Number AN7523N
Voltage - Supply 3.5V~13.5V
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Class AB
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Standby, Thermal Protection, Volume Control
Published 2011
Operating Temperature -25°C~70°C TA
Physical
Supplier Device Package 9-HSIP
Number of Pins 9
Package / Case 9-SIP
Mounting Type Through Hole
Mount Through Hole
