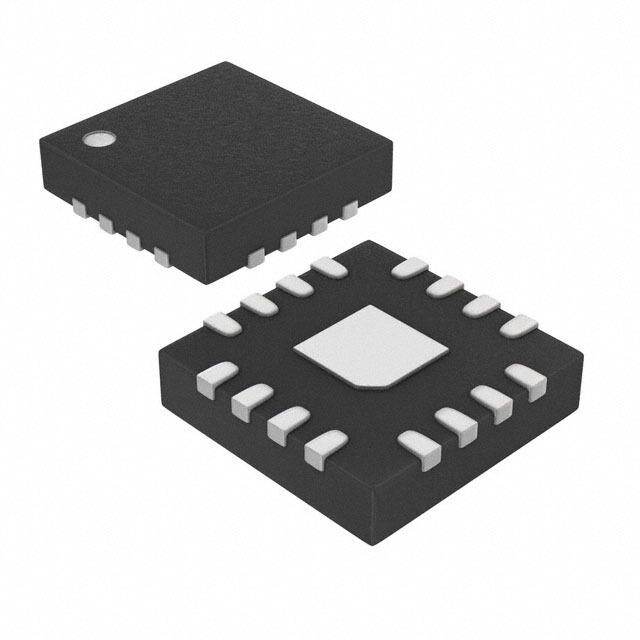

MAX9722AETE+C2N image
Favorite
MAX9722AETE+C2N image
Favorite

MAX9722AETE+C2N

Maxim Integrated
RoHS
/
Package /
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description 8542.33.00.01 2008 QUAD INDUSTRIAL audio amplifier 2.4V 3mm 0.13W 22kHz
PDF
/
Inventory: 8089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 3mm
Length 3mm
Height Seated (Max) 0.8mm

Technical

Consumer IC Type AUDIO AMPLIFIER
Max Output Power 130mW
Bandwidth 22 kHz
Output Power 0.13W
Number of Channels 2
Supply Voltage-Min (Vsup) 2.4V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
JESD-30 Code S-XQCC-N16
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology BICMOS
HTS Code 8542.33.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2008

Physical

Mount Surface Mount
