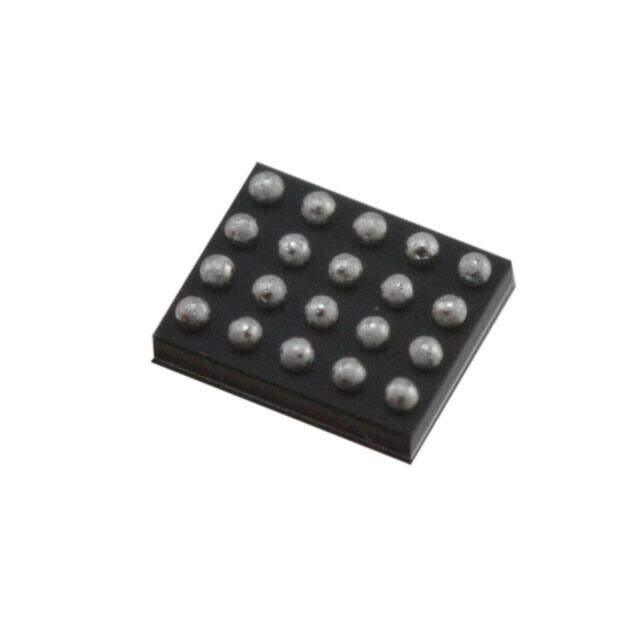

MAX97002EWP+T
RoHS
RoHS compliant
RoHS compliantPackage 20-WFBGA, WLBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 MAX97002 Tape & Reel (TR) Depop Differential Inputs I2C Mute Shutdown Volume Control audio amplifier 1.83.7V 0.5mm 920mW x 1 @ 8Ohm; 37mW x 2 @ 16Ohm 1.85mA
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.481222
≥1 USD $1.481222
≥10 USD $1.397375
≥100 USD $1.318277
≥500 USD $1.243659
≥1000 USD $1.173262
Inventory: 1339
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Depop, Differential Inputs, I2C, Mute, Shutdown, Volume Control
JESD-609 Code e1
Series DirectDrive?
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Max Output Power x Channels @ Load 920mW x 1 @ 8 Ω; 37mW x 2 @ 16 Ω
Max Output Power 920mW
Gain 12 dB
Power Supply Rejection Ratio (PSRR) 85dB
Voltage Gain 18dB
Common Mode Rejection Ratio 55 dB
Output Power 920mW
Nominal Supply Current 1.85mA
Power Supplies 1.83.7V
Output Type 1-Channel (Mono) with Stereo Headphones
Base Part Number MAX97002
Terminal Pitch 0.5mm
Number of Functions 2
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.7V~5.5V
Max Power Dissipation 1.04W
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class D
ECCN Code EAR99
Number of Terminations 20
Physical
Number of Pins 20
Package / Case 20-WFBGA, WLBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
