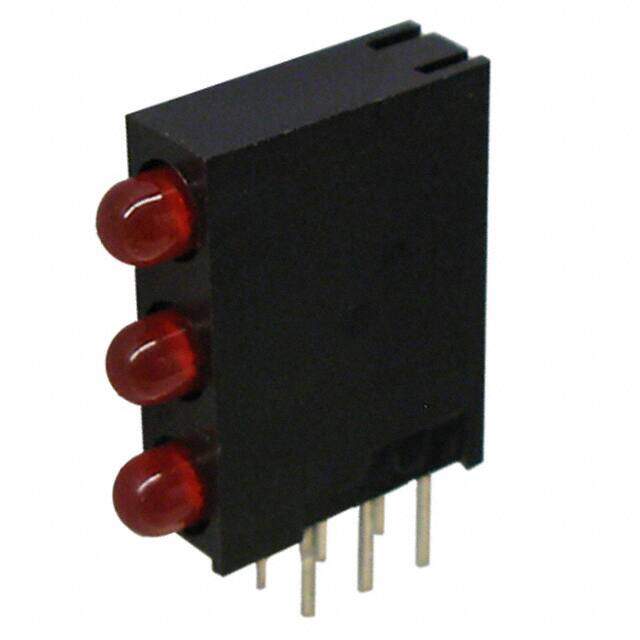

XPZ3LUR147D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED 3MM RED DIFF TRI-LEVEL CBI
PDF
/
Inventory: 944
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Published 2013
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Color Red (x 3)
Voltage - Rated 1.9V
Additional Feature UL RECOGNIZED, HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 3
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration 3 High
Current 160mA
Viewing Angle 40°
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Lens Style Round
Lens Size 5.00mm Dia
Luminous Intensity 11 mcd
Lens Type Diffused, Tinted
Wavelength - Peak 627nm
Overall Height 15.24mm
T-code T-1
Compliance
RoHS Status ROHS3 Compliant
