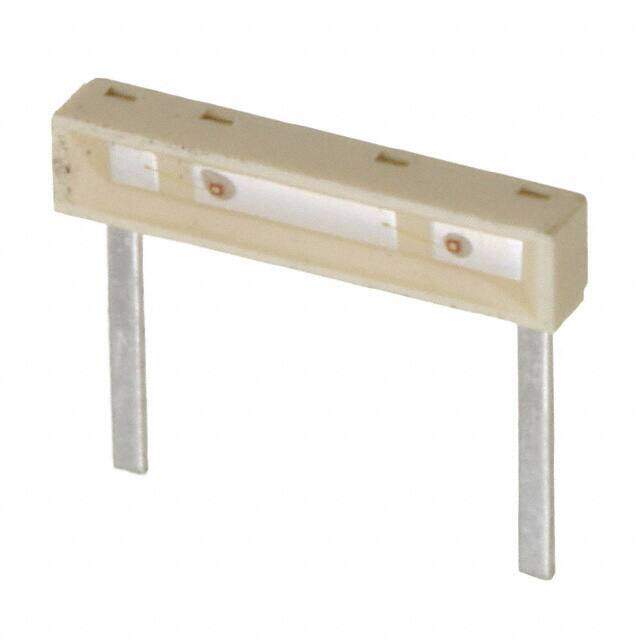

MTBL2410-G-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED SIDE LOOKER 2-CHIP GREEN CLR
PDF
/
Inventory: 8923
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Surface Mount NO
Mounting Feature RADIAL MOUNT
Shape RECTANGULAR
Technical
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 2
Color Green
Voltage - Rated 4.2V
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BAG
Number of Functions 1
Terminal Pitch 7.62mm
Reach Compliance Code unknown
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Single
Current 30mA
Viewing Angle 50°
Lens Style Round with Flat Top
Lens Size 5.10mm Dia
Luminous Intensity 25 mcd
Lens Type Clear, Tinted
Wavelength - Peak 567nm
Forward Voltage-Max 5.2V
Overall Height 1.9mm
Reverse Voltage-Max 10V
Compliance
RoHS Status RoHS Compliant
