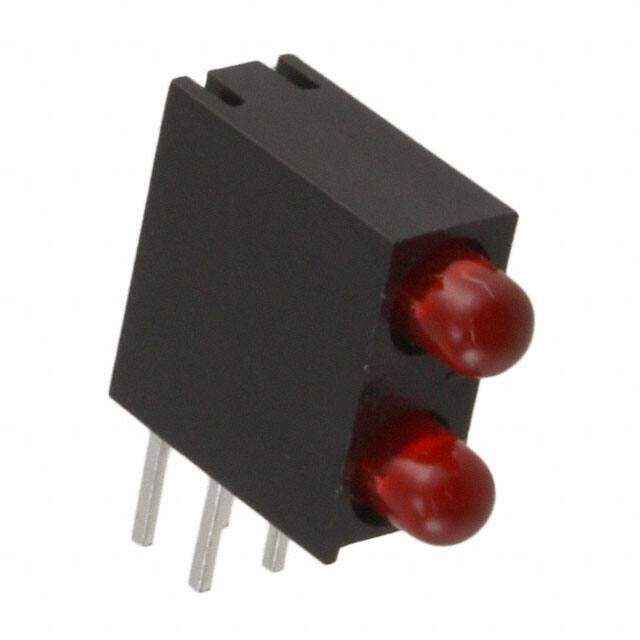

WP934EB/2ID
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED IND 3MM BI-LVL RA RED DIFF
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.6336
≥100 USD $0.4686
≥500 USD $0.430619
≥1000 USD $0.354631
≥3000 USD $0.336899
Inventory: 1254
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 4
Technical
Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Color Red (x 2)
Additional Feature UL RECOGNIZED, IC COMPATIBLE, HIGH RELIABILITY
Number of Functions 2
Operating Temperature (Max) 85°C
Configuration 2 High
Current 20mA
Power Dissipation 75mW
Viewing Angle 40°
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Forward Current 30mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Forward Voltage 2V
Luminous Intensity 22.5 mcd
Lens Type Diffused, Tinted
Millicandela Rating 22.5mcd
Wavelength - Peak 627nm
Lens Color Red
Number of LEDs 2
T-code T-1
Dominant Wavelength 617 nm
Dimensions
Height 9.65mm
Length 4.32mm
Width 12.22mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
