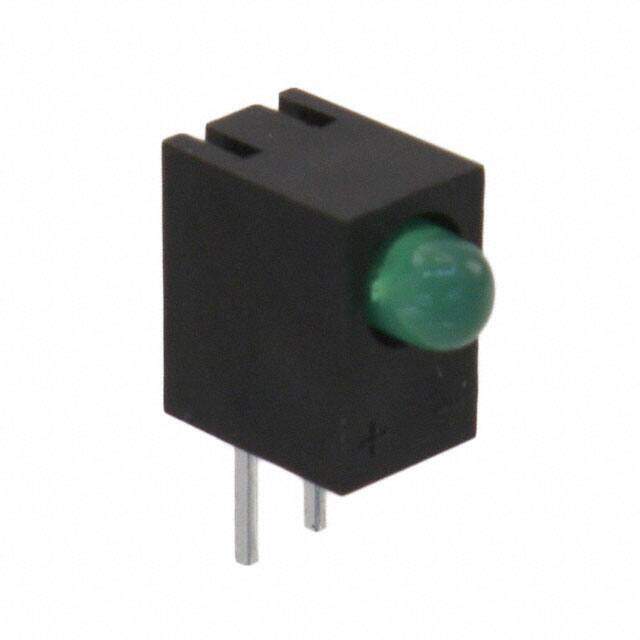

WP934CB/GD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED IND 3MM RA 565NM GREEN DIFF
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.32912
≥100 USD $0.217888
≥500 USD $0.168194
≥1000 USD $0.151985
≥3000 USD $0.141856
Inventory: 5138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount, Through Hole
Mounting Type Through Hole, Right Angle
Technical
Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Color Green
Voltage - Rated 2.2V
Additional Feature UL RECOGNIZED, IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Single
Viewing Angle 40°
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Forward Voltage 2.2V
Luminous Intensity 20 mcd
Lens Type Diffused, Tinted
Millicandela Rating 22.5mcd
Wavelength - Peak 565nm
Overall Height 7.3mm
T-code T-1
Reverse Voltage-Max 5V
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
