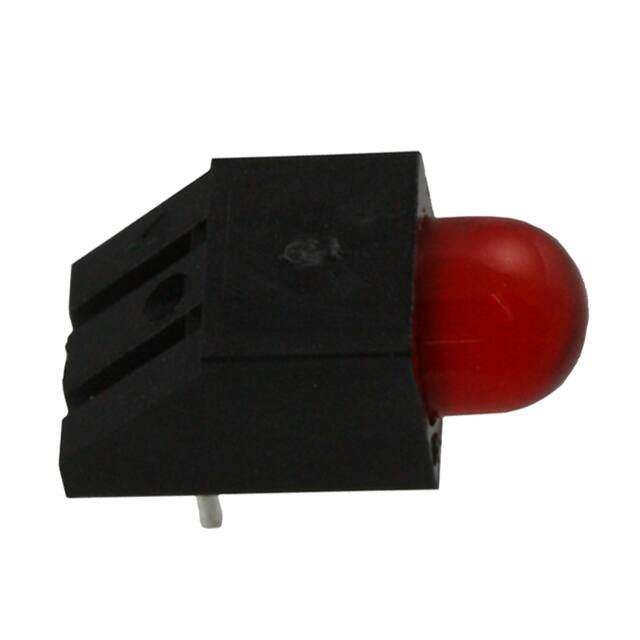

WP1503CB/ID
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
5MM RA.RED LED
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.32912
≥100 USD $0.217888
≥500 USD $0.168194
≥1000 USD $0.141856
≥3000 USD $0.136787
Inventory: 824
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Packaging Bulk
Published 2011
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Color Red
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Single
Current 30mA
Viewing Angle 60°
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 3.00mm Dia
Forward Voltage 2V
Luminous Intensity 50 mcd
Lens Type Diffused, Tinted
Millicandela Rating 50mcd
Wavelength - Peak 627nm
Overall Height 6mm
T-code T-1 3/4
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
