DE4ID
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

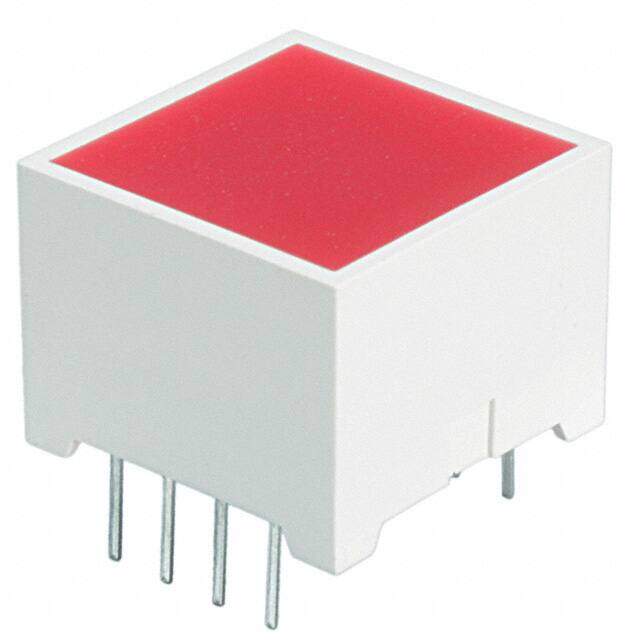

KINGBRIGHT DE/4ID LED Bar Graph Array, Red, 2.5 V, 20 mA, 4 LED's, 33 mcd, 15mm x 15mm
PDF
/
Inventory: 6470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Shape SQUARE
Technical
Packaging Tube
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Color Red
Voltage - Rated 2V
Additional Feature IC COMPATIBLE
HTS Code 8541.40.20.00
Power Rating 75mW
Packing Method BULK
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Bar - Single, DIP
Current 30mA
Viewing Angle 120 deg
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 3.00mm Dia
Forward Voltage 2.5V
Luminous Intensity 33 mcd
Lens Type Diffused, Tinted
Wavelength - Peak 627nm
Overall Height 11.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
