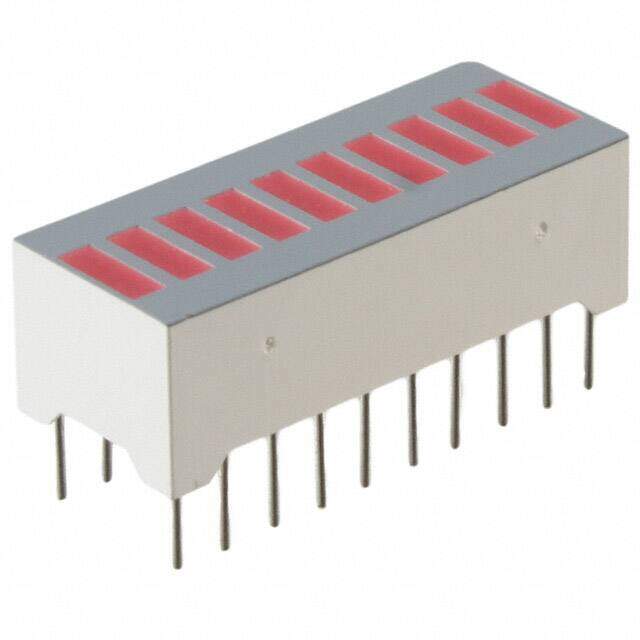

MV57164 image
Favorite
RoHS
RoHS RoHS compliant
Package DIP
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED BARGRAPH 10-SEG HI EFF RED
PDF
/
Buying Options
Total Price: USD $8.39
Unit Price: USD $8.3923
≥1 USD $8.3923
≥10 USD $6.88655
≥100 USD $6.6709
≥500 USD $6.4562
≥1000 USD $6.24055
Inventory: 1260
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 20
Shape RECTANGULAR

Technical

Packaging Tube
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Terminal Finish Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red (x 10)
Voltage - Rated 2V
Additional Feature IC COMPATIBLE
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Terminal Pitch 7.62mm
Depth 10.16mm
Number of Elements 10
Configuration Bar - 10 Wide, DIP
Power Dissipation 750mW
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Forward Current 30mA
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Test Current 10mA
Forward Voltage 2.5V
Luminous Intensity 1.8 mcd
Illumination Color Red
Wavelength - Peak 630nm
Display Type Bar Graph
Reverse Voltage 6V
Overall Height 8mm
Number of LEDs 10

Dimensions

Length 25.53mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
