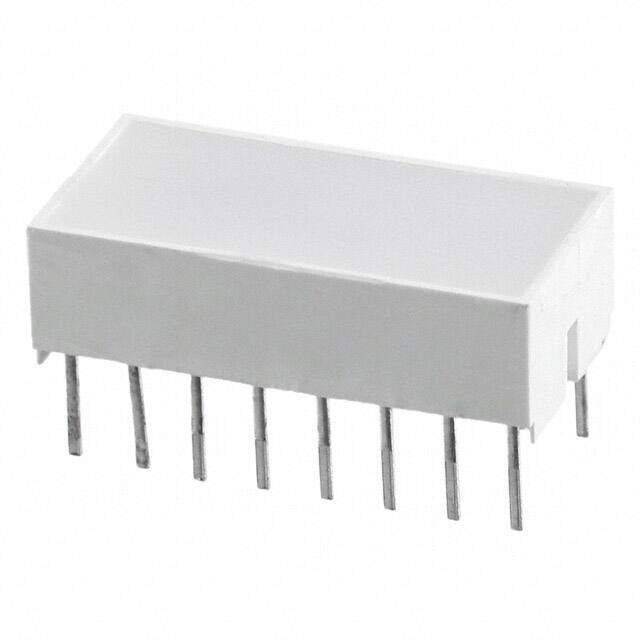

HLMP-2685
RoHS
RoHS compliant
RoHS compliantPackage PDIP
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED LT BAR HI EFF RED 8LED DIP
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.7752
≥1 USD $3.7752
≥10 USD $2.6664
≥100 USD $2.183808
≥500 USD $1.840995
≥1000 USD $1.688632
≥3000 USD $1.618804
Inventory: 154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case PDIP
Number of Pins 16
Shape RECTANGULAR
Technical
Packaging Bulk
Published 2006
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Color Red
Voltage - Rated 2V
Additional Feature IC COMPATIBLE
Number of Functions 1
Terminal Pitch 7.62mm
Depth 10.16mm
Operating Temperature (Min) -40°C
Configuration Bar - Single, DIP
Current 90mA
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Test Current 20mA
Forward Voltage 2.6V
Luminous Intensity 80 mcd
Wavelength - Peak 635nm
Reverse Voltage 6V
Overall Height 5.207mm
Number of LEDs 8
Dominant Wavelength 626 nm
Dimensions
Length 20.32mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
