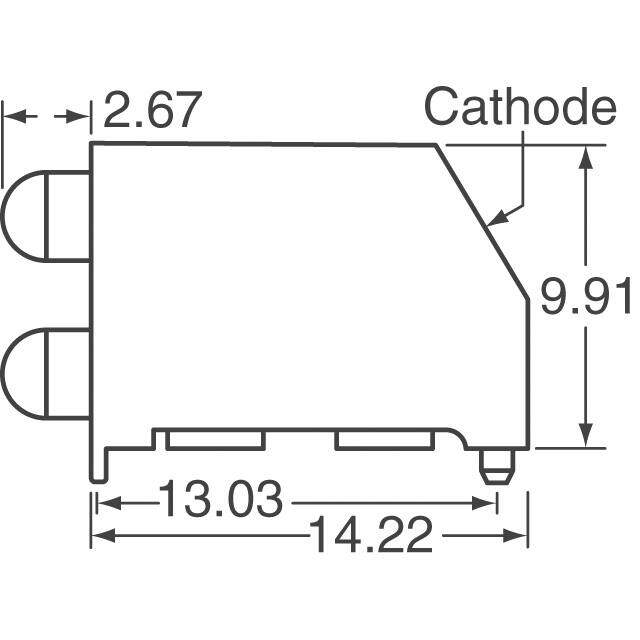

5923030002F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED Circuit Board Indicators Dual R/G 628/570nm 6.5/8mcd
PDF
/
Inventory: 9793
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount, Right Angle
Surface Mount YES
Technical
Packaging Bulk
Published 2008
Series 592
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Color Green, Red (x 2)
Voltage - Rated 2V
HTS Code 8541.40.20.00
Packing Method STRIP
Number of Functions 2
Terminal Pitch 2.9972mm
Reach Compliance Code compliant
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 2 High
Current 30mA
Viewing Angle 40°
Optoelectronic Device Type DUAL COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Luminous Intensity 6.5/8.0 mcd
Millicandela Rating 8mcd Green, 6.5mcd Red
Wavelength - Peak 570nm 628nm
Overall Height 10.92mm
T-code T-1
Compliance
RoHS Status RoHS Compliant
