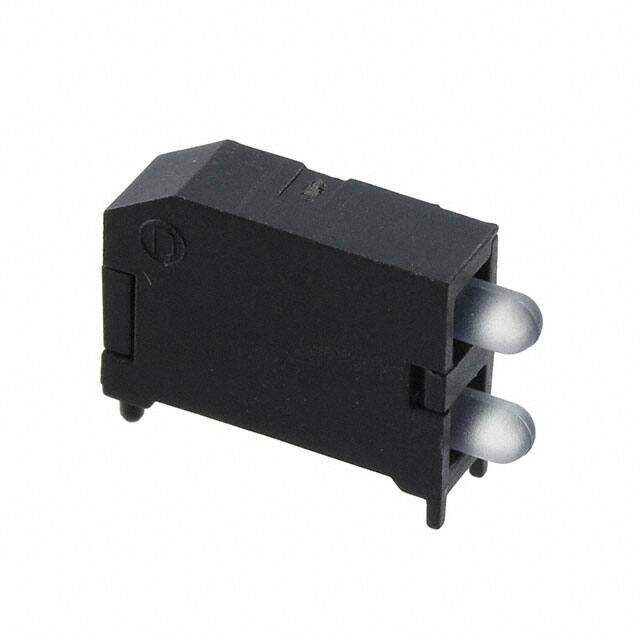

5922828313F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI PRISM BLVL WH/WH TR SIL
PDF
/
Buying Options
Total Price: USD $52.7
Unit Price: USD $5.27
≥10 USD $5.27
≥100 USD $4.5
Inventory: 365
Minimum: 10
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount, Right Angle
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Published 2012
Series 592
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 4
Color White (x 2)
Voltage - Rated 3.1V
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL 13"
Number of Functions 2
Terminal Pitch 3mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -40°C
Configuration 2 High
Current 20mA
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 34.0 mcd
Millicandela Rating 34mcd
Overall Height 11.56mm
Compliance
RoHS Status ROHS3 Compliant
