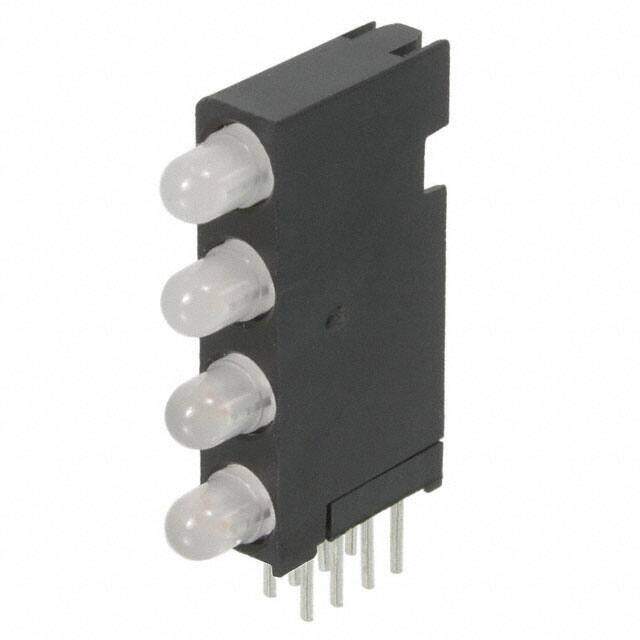

5680701144F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM 4X1 R/G,R/G,Y/G,Y/G
PDF
/
Inventory: 5122
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Voltage-Max 5V
T-code T-1
Number of LEDs 2
Overall Height 20.32mm
Forward Voltage-Max 2.6V
Wavelength - Peak 565nm 635nm 585nm
Millicandela Rating 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow
Lens Type Diffused
Luminous Intensity 8.7 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Optoelectronic Device Type DUAL COLOR LED ARRAY
Viewing Angle 60° Green-Red, 80° Green-Yellow
Current 30mA Green 30mA Red 20mA Yellow
Configuration 4 High
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 1.91mm
Number of Functions 4
HTS Code 8541.40.20.00
Voltage - Rated 2.1V Green 2V Red 2.1V Yellow
Color Green, Red (x 2), Green, Yellow (x 2)
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series 568
Published 2009
Packaging Bulk
Physical
Shape CYLINDRICAL
Mounting Feature THROUGH HOLE MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
