5680102221F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

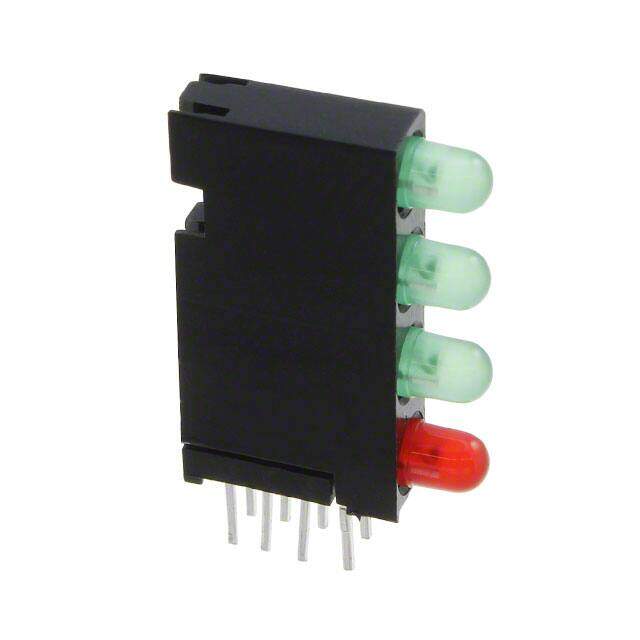

LED CBI 3MM 4X1 RED,GRN,GRN,GRN
PDF
/
Buying Options
Total Price: USD $2.67
Unit Price: USD $2.6664
≥1 USD $2.6664
≥10 USD $1.88408
≥100 USD $1.5796
Inventory: 275
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Shape ROUND
Technical
Packaging Bulk
Published 2009
Series 568
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Green (x 3), Red (x 1)
Voltage - Rated 2.1V
HTS Code 8541.40.20.00
Subcategory Other Optoelectronics
Packing Method BAG
Number of Functions 4
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 4 High
Current 20mA
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED ARRAY
Lens Style Rectangle with Flat Top
Lens Size 5.00mmx2.70mm
Luminous Intensity 10.0/12.6 mcd
Millicandela Rating 12.6mcd
Wavelength - Peak 565nm
Forward Voltage-Max 2.8V
Overall Height 20.32mm
Number of LEDs 4
T-code T-1
Luminous Intensity-Min 0.0047 cd
Compliance
RoHS Status ROHS3 Compliant
