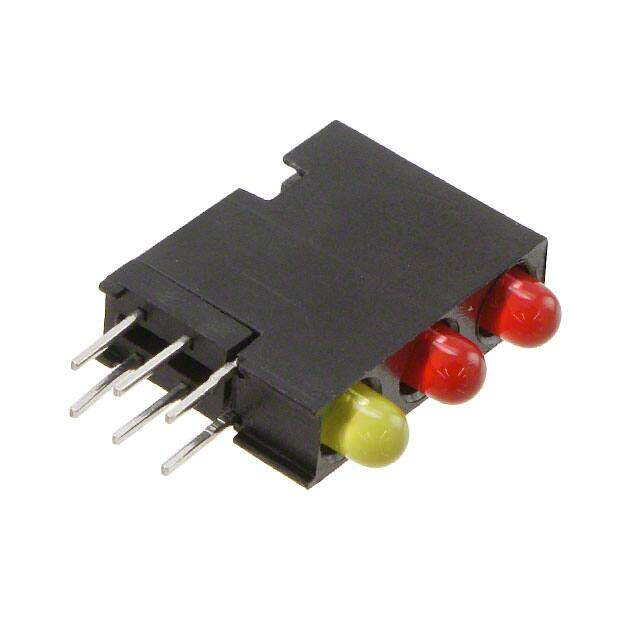

5640100113F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM 3X1 RED/RED/YLW DIFF
PDF
/
Buying Options
Total Price: USD $4.21
Unit Price: USD $4.2064
≥1 USD $4.2064
≥10 USD $2.97616
≥100 USD $2.4948
Inventory: 37
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2007
Series 564
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Red (x 2), Yellow (x 1)
Voltage - Rated 2V Red 2.1V Yellow
HTS Code 8541.40.20.00
Packing Method BAG
Number of Functions 3
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 3 High
Current 30mA Red 20mA Yellow
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 10.0 mcd
Lens Type Diffused
Millicandela Rating 10mcd Red, 10mcd Yellow
Wavelength - Peak 635nm 585nm
Overall Height 15.24mm
Compliance
RoHS Status ROHS3 Compliant
