5612101070F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

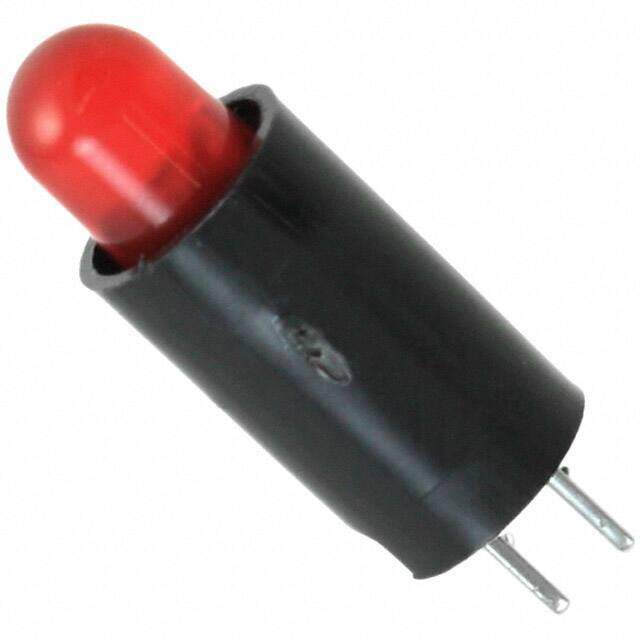

LED 5MM VERT HE DIFF RED PC MNT
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.0912
≥1 USD $1.0912
≥10 USD $0.69344
≥100 USD $0.51304
≥500 USD $0.471416
≥1000 USD $0.38823
≥3000 USD $0.368817
Inventory: 773
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2002
Series 561
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Red
Voltage - Rated 2.2V
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration Single
Current 10mA
Viewing Angle 60°
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 7.0 mcd
Lens Type Diffused
Millicandela Rating 7mcd
Wavelength - Peak 635nm
Forward Voltage-Max 3V
Overall Height 17.8mm
T-code T-1 3/4
Compliance
RoHS Status ROHS3 Compliant
