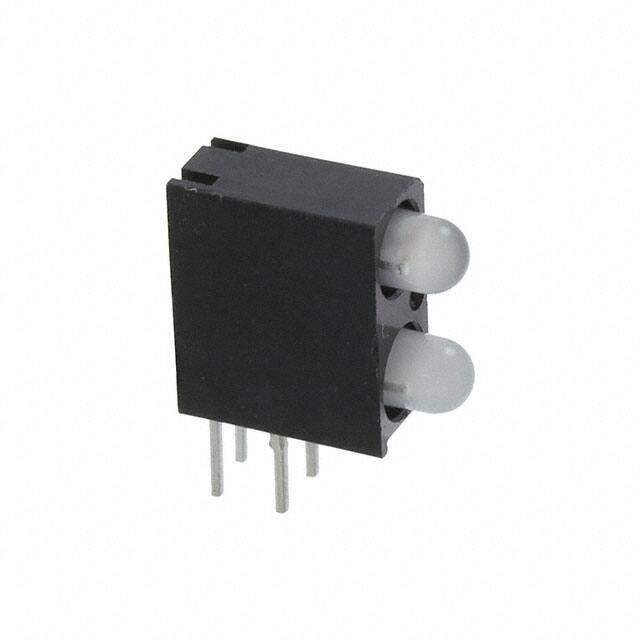

5530741F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL YW/GRN RD/GRN
PDF
/
Buying Options
Total Price: USD $3
Unit Price: USD $3.0008
≥1 USD $3.0008
≥10 USD $1.999184
≥100 USD $1.538592
≥500 USD $1.390787
≥1000 USD $1.195216
≥3000 USD $1.130026
Inventory: 545
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2009
Series 553
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Green, Red (x 1), Green, Yellow (x 1)
Voltage - Rated 2.1V Green 2V Red 2.1V Yellow
HTS Code 8541.40.20.00
Number of Functions 2
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 2 High x 2 Wide
Current 30mA Green 30mA Red 20mA Yellow
Viewing Angle 60° Green-Red, 80° Green-Yellow
Optoelectronic Device Type TRIPLE COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 1.81mm Dia
Luminous Intensity 4.7/10.0/4.3/6.3 mcd
Lens Type Diffused
Millicandela Rating 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow
Wavelength - Peak 565nm 635nm 585nm
Overall Height 9.65mm
T-code T-1
Compliance
RoHS Status ROHS3 Compliant
