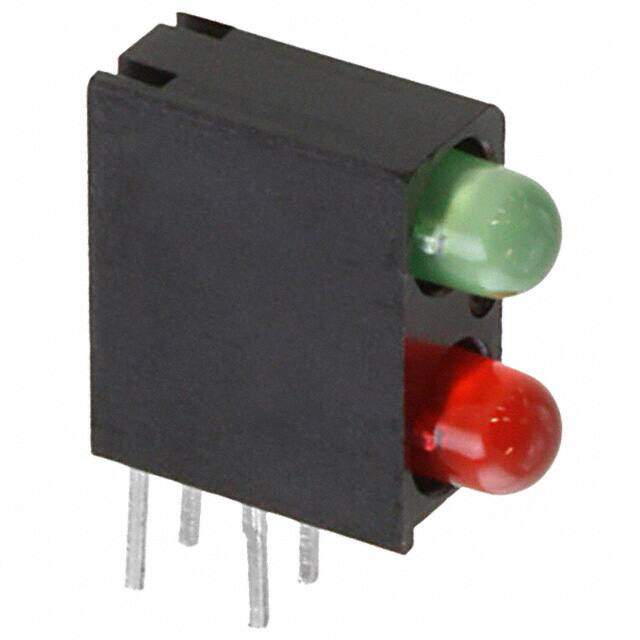

5530321F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL GRN/RED DIFF
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.244
≥1 USD $2.244
≥10 USD $1.496352
≥100 USD $1.151568
≥500 USD $1.04097
≥1000 USD $0.894573
≥3000 USD $0.845786
Inventory: 714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Shape ROUND
Technical
Packaging Bulk
Published 2008
Series 553
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Color Green (x 1), Red (x 1)
Voltage - Rated 5V
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Other Optoelectronics
Packing Method BAG
Number of Functions 2
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration 2 High
Current 20mA
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED ARRAY
Size 3mm
Luminous Intensity 10.0/16.0 mcd
Lens Type Diffused, Tinted
Millicandela Rating 19mcd Green, 29mcd Red
Wavelength - Peak 565nm 635nm
Forward Voltage-Max 3V
Overall Height 9.65mm
Number of LEDs 2
T-code T-1
Luminous Intensity-Min 0.0036 cd
Compliance
RoHS Status ROHS3 Compliant
