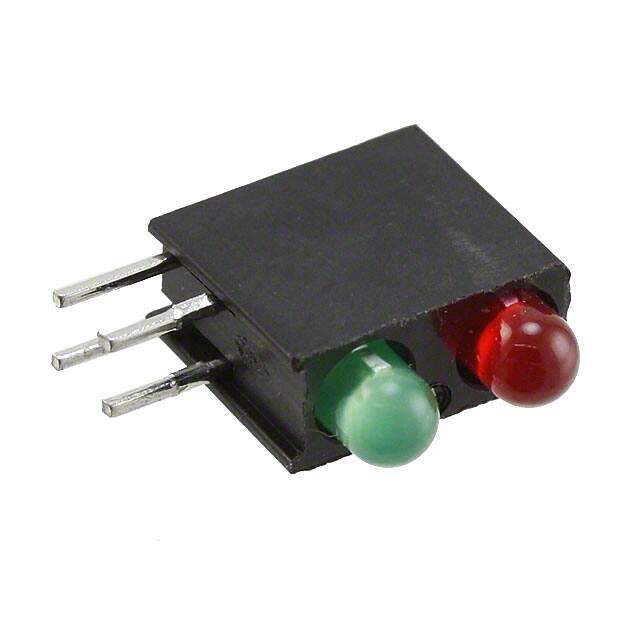

5530312F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL RED/GRN DIFF
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $1.60072
≥100 USD $1.231824
≥500 USD $0.956903
≥1000 USD $0.883828
≥3000 USD $0.869915
Inventory: 633
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Luminous Intensity-Min 0.0036 cd
T-code T-1
Number of LEDs 2
Overall Height 9.65mm
Forward Voltage-Max 3V
Forward Current-Max 0.02A
Wavelength - Peak 565nm 635nm
Millicandela Rating 19mcd Green, 29mcd Red
Luminous Intensity 10.0/16.0 mcd
Size 3mm
Optoelectronic Device Type DUAL COLOR LED ARRAY
Configuration 2 High
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 2
Packing Method BAG
Subcategory Other Optoelectronics
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Voltage - Rated 5V Green 5V Red
Color Green (x 1), Red (x 1)
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 553
Published 2008
Packaging Bulk
Physical
Shape ROUND
Mounting Feature RADIAL MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
