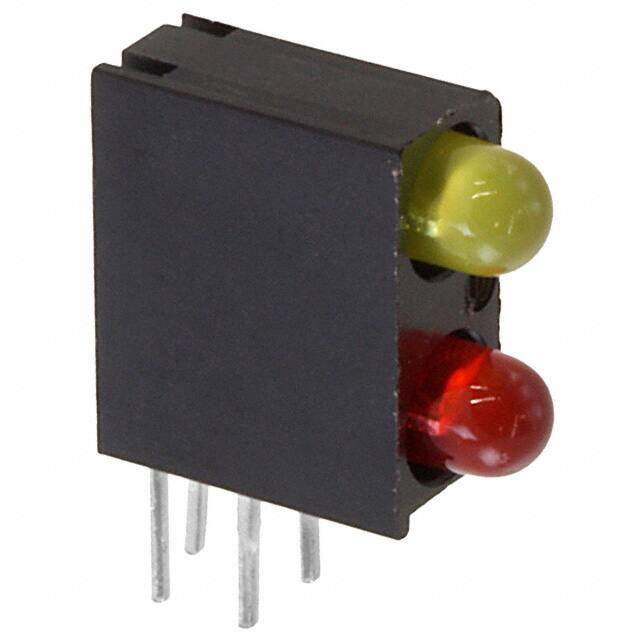

5530231F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL YLW/RED DIFF
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.249072
≥100 USD $0.961224
≥500 USD $0.868894
≥1000 USD $0.746706
≥3000 USD $0.70598
Inventory: 528
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2008
Series 553
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Red (x 1), Yellow (x 1)
Voltage - Rated 2V Red 2.1V Yellow
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Other Optoelectronics
Packing Method BAG
Number of Functions 2
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 2 High
Optoelectronic Device Type DUAL COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 10.0/6.3 mcd
Millicandela Rating 10mcd Red, 6.3mcd Yellow
Wavelength - Peak 650nm 585nm
Forward Current-Max 0.007A
Forward Voltage-Max 3V
Overall Height 9.65mm
Number of LEDs 2
T-code T-1
Luminous Intensity-Min 0.0022 cd
Compliance
RoHS Status ROHS3 Compliant
