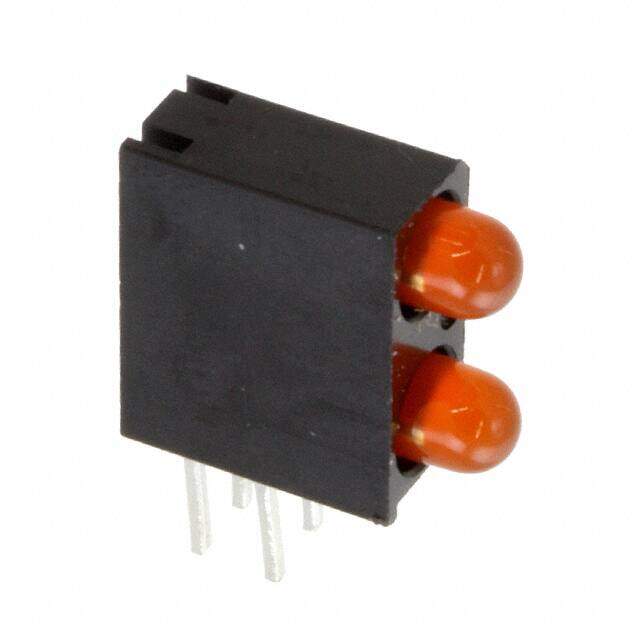

5530177F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL ORN/ORN DIFF
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4344
≥1 USD $1.4344
≥10 USD $0.957088
≥100 USD $0.73656
≥500 USD $0.7326
Inventory: 500
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2013
Series 553
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Orange (x 2)
Voltage - Rated 1.9V
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Number of Functions 2
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 2 High
Current 20mA
Viewing Angle 60°
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 7.0 mcd
Lens Type Diffused, Tinted
Millicandela Rating 7mcd
Wavelength - Peak 600nm
Forward Voltage-Max 2.2V
Overall Height 9.65mm
Number of LEDs 2
T-code T-1
Luminous Intensity-Min 0.0065 cd
Compliance
RoHS Status ROHS3 Compliant
