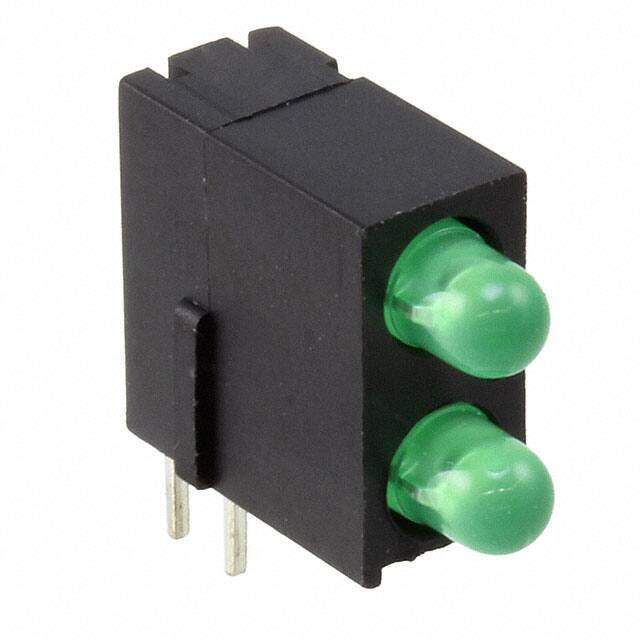

5530122400F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL GREEN/GREEN
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.361536
≥100 USD $1.047728
≥500 USD $0.947109
≥1000 USD $0.813921
≥3000 USD $0.769525
Inventory: 830
Minimum: 1
-
+
Technical Details
Technical
Millicandela Rating 12.6mcd
Wavelength - Peak 565nm
Forward Voltage-Max 2.1V
Overall Height 10.08mm
Number of LEDs 2
T-code T-1
Luminous Intensity-Min 0.0126 cd
Lens Type Diffused, Tinted
Luminous Intensity 12.6 mcd
Size 3mm
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Viewing Angle 60°
Current 20mA
Configuration 2 High
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 2
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Voltage - Rated 2.1V
Color Green (x 2)
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 553
Published 2002
Packaging Bulk
Compliance
RoHS Status ROHS3 Compliant
Physical
Shape ROUND
Mounting Feature RADIAL MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
