5530121200F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

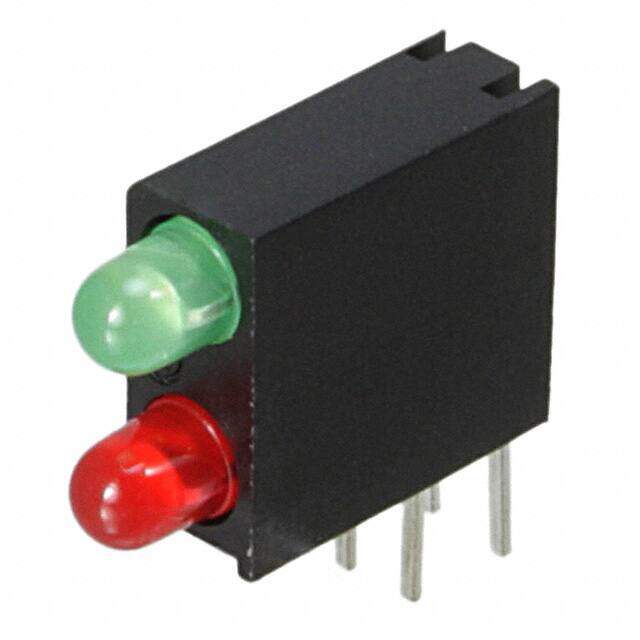

LED CBI 3MM BI-LVL GREEN/RED
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.361536
≥100 USD $1.047728
≥500 USD $0.947109
≥1000 USD $0.813921
≥3000 USD $0.769525
Inventory: 1104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2006
Series 553
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Green (x 1), Red (x 1)
Voltage - Rated 2.1V Green 2V Red
HTS Code 8541.40.20.00
Packing Method BAG
Number of Functions 2
Terminal Pitch 2.54mm
Configuration 2 High
Current 10mA
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 10.0/12.6 mcd
Lens Type Diffused, Tinted
Millicandela Rating 12.6mcd Green, 10mcd Red
Wavelength - Peak 565nm 635nm
Overall Height 9.65mm
T-code T-1
Compliance
RoHS Status ROHS3 Compliant
