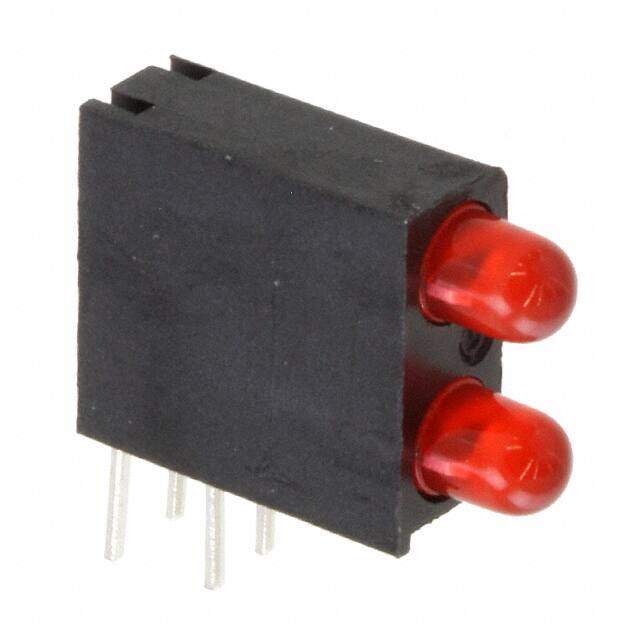

5530111200F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM BI-LVL RED/RED
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4344
≥1 USD $1.4344
≥10 USD $0.957088
≥100 USD $0.73656
≥500 USD $0.7326
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Technical
Packaging Bulk
Published 2006
Series 553
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Red (x 2)
Voltage - Rated 2V
HTS Code 8541.40.20.00
Packing Method BAG
Number of Functions 2
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration 2 High
Current 20mA
Viewing Angle 60°
Optoelectronic Device Type SINGLE COLOR LED ARRAY
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 10.0 mcd
Lens Type Diffused, Tinted
Millicandela Rating 10mcd
Wavelength - Peak 635nm
Forward Voltage-Max 2.2V
Overall Height 9.65mm
T-code T-1
Luminous Intensity-Min 0.01 cd
Compliance
RoHS Status ROHS3 Compliant
