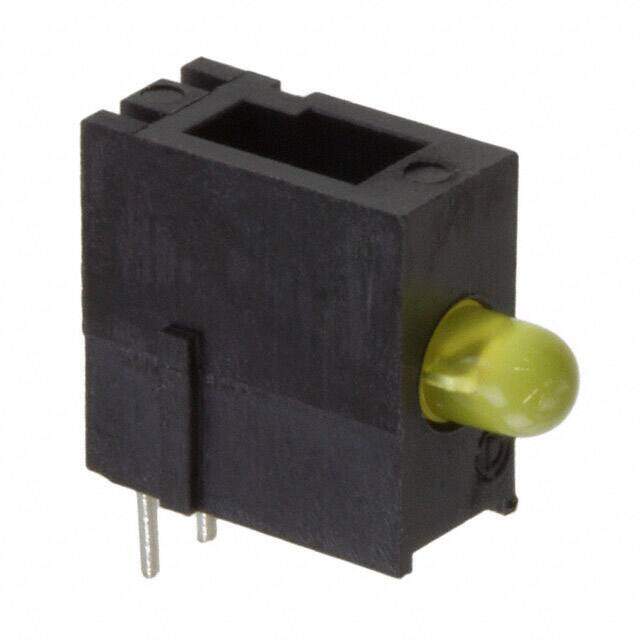

5510301F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM DIN YLW DIFF RA SGL
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.72248
≥100 USD $0.534424
≥500 USD $0.404404
≥1000 USD $0.375514
≥3000 USD $0.366854
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
T-code T-1
Overall Height 10mm
Forward Voltage-Max 2.2V
Wavelength - Peak 585nm
Millicandela Rating 10mcd
Lens Type Diffused, Tinted
Luminous Intensity 10.0 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Viewing Angle 60°
Current 20mA
Configuration Single
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Voltage - Rated 2.1V
Color Yellow
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 551
Published 1999
Packaging Bulk
Physical
Mounting Feature RADIAL MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
