5505705F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

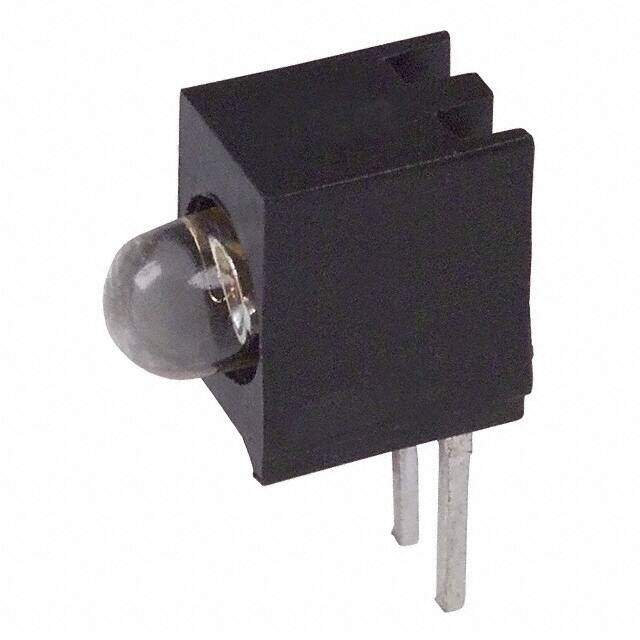

LED 5MM RT ANG SUP CLR YEL PCMNT
PDF
/
Inventory: 2741
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature RADIAL MOUNT
Shape ROUND
Technical
Packaging Bulk
Published 2002
Series 550
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Yellow
Voltage - Rated 2.2V
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BAG
Number of Functions 1
Terminal Pitch 2.54mm
Reach Compliance Code compliant
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration Single
Current 20mA
Viewing Angle 24°
Size 5mm
Luminous Intensity 80.0 mcd
Lens Type Clear
Millicandela Rating 140mcd
Wavelength - Peak 583nm
Forward Voltage-Max 2.5V
Overall Height 6.1mm
T-code T-1 3/4
Compliance
RoHS Status RoHS Compliant
