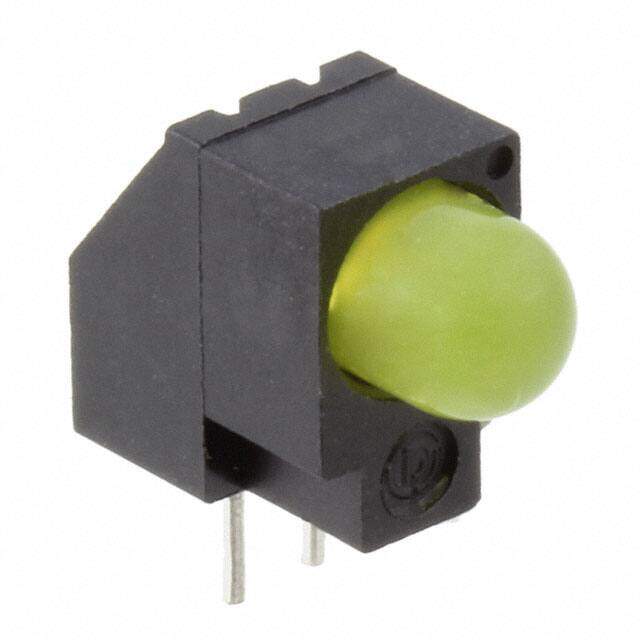

5505308F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 5MM YLW DIFF 25A
PDF
/
Inventory: 2562
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Overall Height 9.4mm
Forward Voltage-Max 2.2V
Wavelength - Peak 585nm
Millicandela Rating 34mcd
Lens Type Diffused
Luminous Intensity 34.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 50°
Current 25mA
Configuration Single
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Voltage - Rated 2.2V
Color Yellow
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 550
Published 2002
Packaging Bulk
Physical
Mounting Feature RADIAL MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
