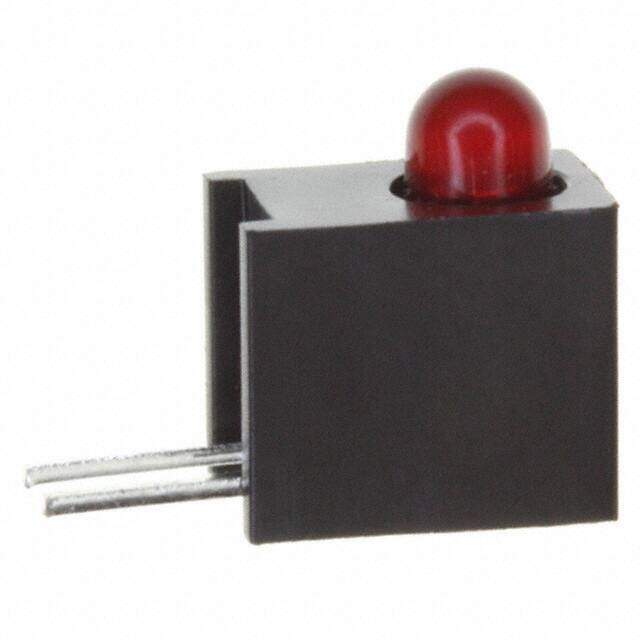

HLMP-1700-B00A2
RoHS
RoHS compliant
RoHS compliantPackage T
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
BROADCOM LIMITED HLMP-1700-B00A2 LED, Red, Through Hole, T-1 (3mm), 2 mA, 1.7 V, 626 nm
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $0.82896
≥100 USD $0.613712
≥500 USD $0.563939
≥1000 USD $0.46442
≥3000 USD $0.441197
Inventory: 1104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case T
Number of Pins 2
Technical
Packaging Bulk
Published 2008
Series HLMP-1700
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Voltage - Rated 1.7V
Depth 3.43mm
Lead Length 3.4mm
Number of Elements 1
Configuration Single
Element Configuration Single
Current 2mA
Power Dissipation 14mW
Viewing Angle 50 °
Forward Current 2mA
Lens Style Diffused
Test Current 2mA
Forward Voltage 1.7V
Luminous Intensity 2.1 mcd
Lens Type Diffused, Tinted
Millicandela Rating 2.1mcd
Illumination Color Red
Wavelength - Peak 635nm
Lens Color Red
Reverse Voltage 5V
Wavelength 626 nm
Number of LEDs 1
Dominant Wavelength 626 nm
Dimensions
Diameter 3mm
Length 3.43mm
Width 4.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
