HLMP-1600-D00A2
RoHS
RoHS compliant
RoHS compliantPackage T
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description

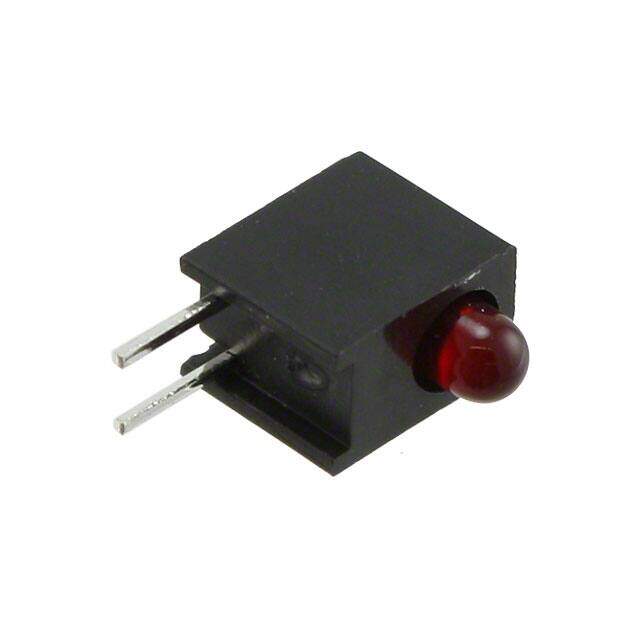

LED 3MM 5V GAP RED RA HOUSING
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.54979
≥1 USD $1.54979
≥10 USD $1.462069
≥100 USD $1.379307
≥500 USD $1.301235
≥1000 USD $1.227575
Inventory: 1231
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case T
Number of Pins 2
Shape Round
Technical
Packaging Bulk
Series HLMP-1600
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red
Subcategory Visible LEDs
Number of Functions 1
Depth 3.43mm
Number of Elements 1
Configuration Single
Current 10mA
Viewing Angle 60°
Forward Current 15mA
Lens Style Diffused
Forward Voltage 7.5V
Luminous Intensity 2.1 mcd
Lens Type Diffused, Tinted
Wavelength - Peak 635nm
Reverse Voltage 5V
Overall Height 4.445mm
T-code T-1
Dominant Wavelength 626 nm
Dimensions
Diameter 3mm
Length 3.43mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Not Applicable
