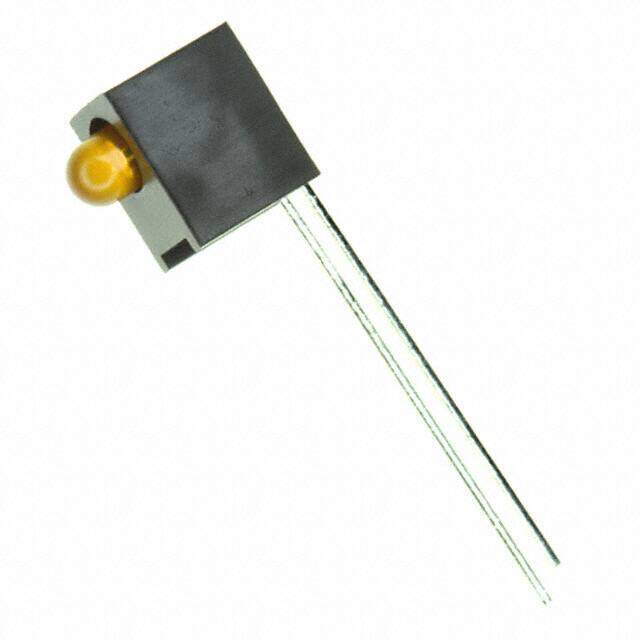

HLMP-1401-D00A1
RoHS
RoHS compliant
RoHS compliantPackage T
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED 3MM GAP DIFF YLW RA HOUSING
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $0.97328
≥100 USD $0.720192
≥500 USD $0.661795
≥1000 USD $0.54501
≥3000 USD $0.517766
Inventory: 1120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case T
Number of Pins 2
Shape ROUND
Technical
Packaging Bulk
Published 2013
Series HLMP-1401
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Yellow
Voltage - Rated 2V
Subcategory Visible LEDs
Number of Functions 1
Depth 3.43mm
Number of Elements 1
Configuration Single
Viewing Angle 60°
Forward Current 20mA
Lens Style Diffused
Test Current 10mA
Forward Voltage 1.5V
Luminous Intensity 3.6 mcd
Lens Type Diffused, Tinted
Wavelength - Peak 583nm
Reverse Voltage 5V
Overall Height 4.445mm
T-code T-1
Dominant Wavelength 585 nm
Dimensions
Diameter 3mm
Length 3.43mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
