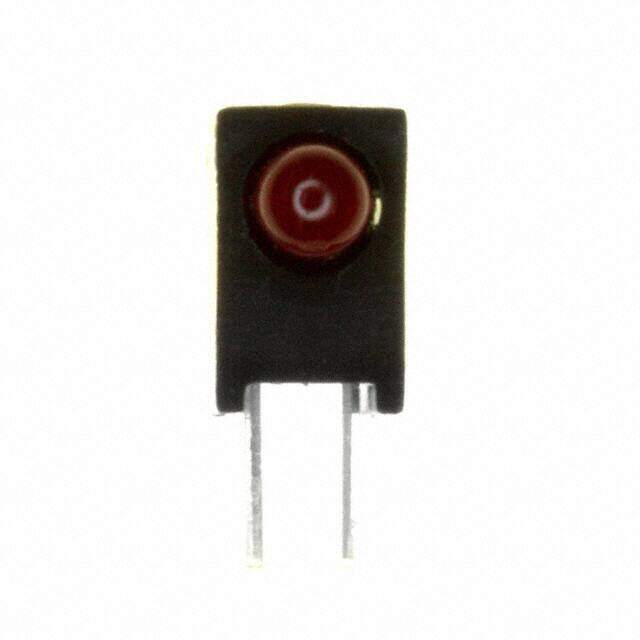

HLMP-1301-E00A2
RoHS
RoHS compliant
RoHS compliantPackage T
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED 3MM GAP DIFF RED RA HOUSING
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.56672
≥100 USD $0.419408
≥500 USD $0.385387
≥1000 USD $0.317372
≥3000 USD $0.301506
Inventory: 11949
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case T
Number of Pins 2
Shape ROUND
Technical
Packaging Bulk
Published 2005
Series HLMP-1301
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Voltage - Rated 1.9V
Subcategory Visible LEDs
Number of Functions 1
Depth 3.43mm
Number of Elements 1
Configuration Single
Viewing Angle 60 °
Forward Current 10mA
Lens Style Diffused
Lens Size 3mm
Test Current 10mA
Forward Voltage 1.9V
Luminous Intensity 3.4 mcd
Lens Type Diffused, Tinted
Wavelength - Peak 635nm
Reverse Voltage 5V
Overall Height 4.445mm
T-code T-1
Dominant Wavelength 626 nm
Dimensions
Diameter 3mm
Length 3.43mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
