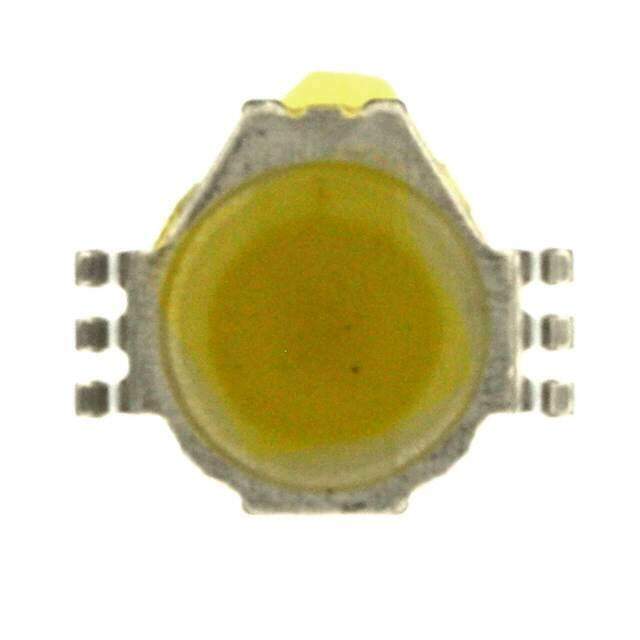

OVTL01LGAWDS
RoHS
/
Package 6-SMD, Gull Wing
Category Optoelectronics / LED Lighting - White
Description
LED LEDNIUM COOL WHT 5800K 6SMD
PDF
/
Inventory: 8296
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5mm
Length 6mm
Height Seated (Max) 0.064 1.62mm
Height 1.52mm
Diameter 4.4mm
Technical
Input Current 350mA
Flux @ 25°C, Current - Test 60lm Typ
Reverse Voltage 5V
Luminous Flux 60 lm
Lens Color Clear
Illumination Color White
Current - Max 350mA
Luminous Intensity 12.5 mcd
Forward Voltage 3.4V
CCT (K) 5800K (5200K ~ 6400K)
Lumens/Watt @ Current - Test 50 lm/W
Peak Pulse Current 1A
Lens Style Colorless, Diffused
Current - Test 350mA
Forward Current 350mA
Viewing Angle 135°
Voltage - Forward (Vf) (Typ) 3.4V
Power Dissipation 1W
Nominal Supply Current 350mA
Max Current Rating 350mA
Number of Elements 1
Depth 4.2mm
Voltage - Rated DC 3.4V
Power Rating 1W
Color White, Cool
Min Operating Temperature -50°C
Max Operating Temperature 85°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Series Lednium
Published 2007
Packaging Tape & Reel (TR)
Physical
Thermal Resistance of Package 2°C/W
Supplier Device Package SMD
Number of Pins 6
Package / Case 6-SMD, Gull Wing
Mount Surface Mount
