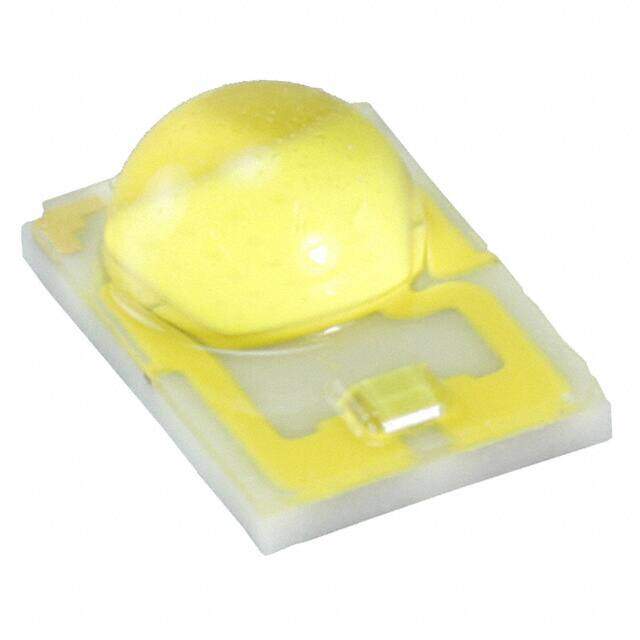

LXML-PWC2

Lumileds
RoHS
RoHS RoHS compliant
Package 1812 (4532 Metric)
Category Optoelectronics / LED Lighting - White
Description LXML-PWC2; LUXEON Rebel ES Series White High-Power LED; 5650K; 3-Pin; Round Lens
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.20933
≥1 USD $2.20933
≥10 USD $2.08428
≥100 USD $1.9663
≥500 USD $1.855
≥1000 USD $1.75
Inventory: 2984
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Number of Pins 3
Thermal Resistance of Package 6°C/W

Technical

Packaging Cut Tape (CT)
Published 2005
Series LUXEON Rebel ES
Size / Dimension 0.177Lx0.120W 4.49mmx3.05mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 135°C
Min Operating Temperature -40°C
Color White, Cool
Max Current Rating 1A
Voltage - Forward (Vf) (Typ) 2.9V
Viewing Angle 120°
Forward Current 1A
Current - Test 700mA
Lens Style Circular, Dome, Round
Lumens/Watt @ Current - Test 116 lm/W
CCT (K) 5650K
CRI (Color Rendering Index) 60
Forward Voltage 2.9V
Current - Max 1A
Illumination Color White
Lens Color Clear, White
Luminous Flux 200 lm
Flux @ 25°C, Current - Test 235lm Typ
Number of LEDs 1

Dimensions

Height 1.98mm
Height Seated (Max) 0.083 2.10mm
Length 4.49mm
Width 3.05mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
