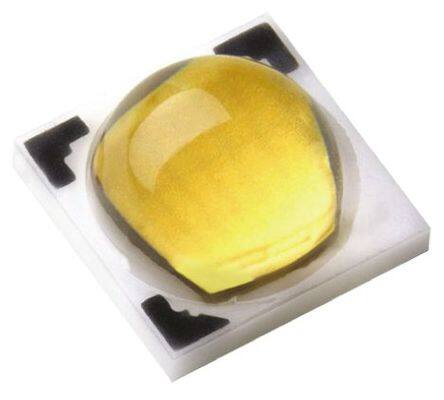

LXAC-1827
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD, No Lead Exposed Pad
Category Optoelectronics / LED Lighting - White
Description
High Power LEDs - White Warm White, 2700K 80CRI
PDF
/
Buying Options
Total Price: USD $2.17
Unit Price: USD $2.165721
≥1 USD $2.165721
≥10 USD $2.043135
≥100 USD $1.927484
≥500 USD $1.818381
≥1000 USD $1.715454
Inventory: 1078
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 3-SMD, No Lead Exposed Pad
Number of Pins 3
Thermal Resistance of Package 3°C/W
Technical
Packaging Tape & Reel (TR)
Published 2012
Series LUXEON H50-2
Size / Dimension 0.146Lx0.146W 3.70mmx3.70mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 118°C
Min Operating Temperature -40°C
Color White, Warm
Subcategory Visible LEDs
Max Current Rating 45mA
Voltage - Forward (Vf) (Typ) 50V
Viewing Angle 110°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 40mA
Lens Style Round
Lumens/Watt @ Current - Test 83 lm/W
CCT (K) 2700K
CRI (Color Rendering Index) 80
Illumination Color White
Lens Color Clear
Luminous Flux 150 lm
Forward Voltage-Max 52V
Flux @ 85°C, Current - Test 165lm Typ
Number of LEDs 1
Dimensions
Height 2.018mm
Height Seated (Max) 0.083 2.10mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
