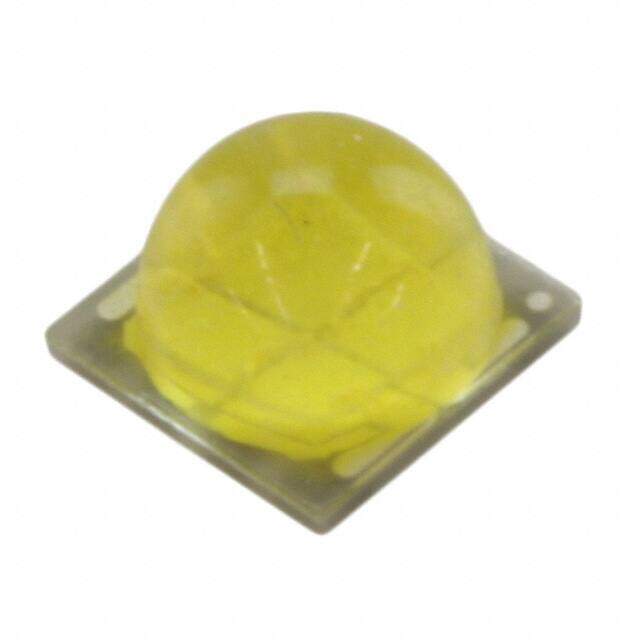

ELYI-K32M5-0LPGS-P3000
RoHS
RoHS compliant
RoHS compliantPackage 2424 (6060 Metric)
Category Optoelectronics / LED Lighting - White
Description
LED,5W,WARM WHITE,275LM - More Details
PDF
/
Inventory: 5302
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2424 (6060 Metric)
Number of Pins 8
Shape ROUND
Thermal Resistance of Package 6°C/W
Technical
Packaging Tape & Reel (TR)
Published 2011
Series Yi
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color White, Warm
Packing Method TAPE AND REEL 7"
Number of Functions 1
Configuration 2 BANKS, SERIES CONNECTED, 2 ELEMENTS
Max Current Rating 1A
Voltage - Forward (Vf) (Typ) 7V
Viewing Angle 105°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 700mA
Lens Style Circular
Lumens/Watt @ Current - Test 56 lm/W
CCT (K) 3000K (2870K ~ 3220K)
CRI (Color Rendering Index) 75
Illumination Color White
Luminous Flux 275 lm
Flux @ 25°C, Current - Test 275lm 275lm~300lm
Flux @ 85°C, Current - Test 261lm
Number of LEDs 1
Dimensions
Height 3.75mm
Height Seated (Max) 0.174 4.43mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
